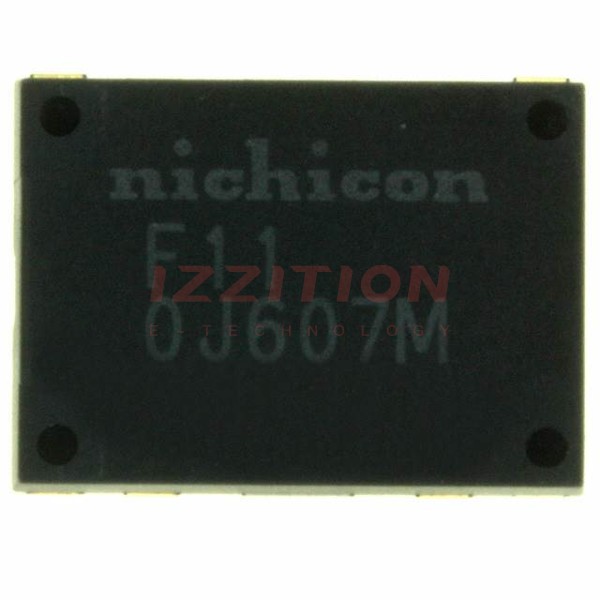

| Part Number | F110J607MFK | F110E607MFK |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete |
| Capacitance | 600 µF | 600 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 2.5 V |
| ESR (Equivalent Series Resistance) | 5mOhm @ 100kHz | 5mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | - | - |
| Ripple Current @ High Frequency | 6.3 A @ 100 kHz | 6.3 A @ 100 kHz |
| Impedance | - | - |
| Lead Spacing | - | - |
| Size / Dimension | 0.658" L x 0.477" W (16.70mm x 12.10mm) | 0.658" L x 0.477" W (16.70mm x 12.10mm) |
| Height - Seated (Max) | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Surface Mount Land Size | 0.657" L x 0.476" W (16.70mm x 12.10mm) | 0.657" L x 0.476" W (16.70mm x 12.10mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard SMD | Nonstandard SMD |
