Nichicon-F110G807MFK - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	800 µF
Tolerance:	±20%
Voltage - Rated:	4 V
ESR (Equivalent Series Resistance):	5mOhm @ 100kHz
Lifetime @ Temp.:	5000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	-
Ripple Current @ High Frequency:	6.3 A @ 100 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.658" L x 0.477" W (16.70mm x 12.10mm)
Height - Seated (Max):	0.098" (2.50mm)
Surface Mount Land Size:	0.657" L x 0.476" W (16.70mm x 12.10mm)
Mounting Type:	Surface Mount
Package / Case:	Nonstandard SMD

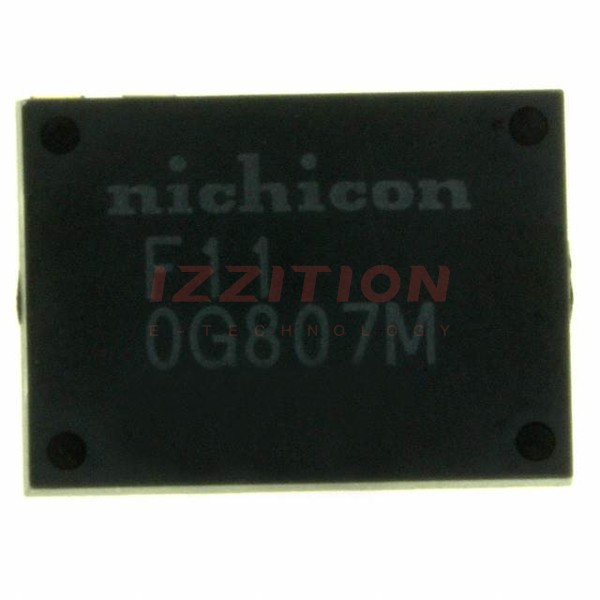

Nichicon F110G807MFK
