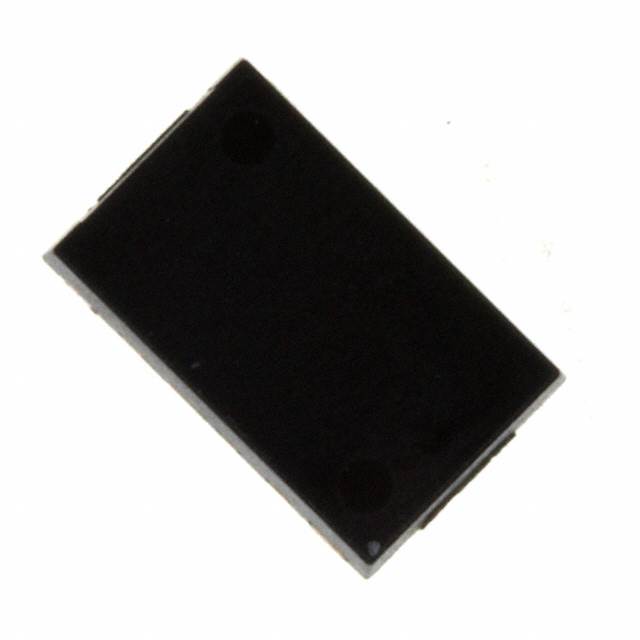

Nichicon-F110E227MDL - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	220 µF
Tolerance:	±20%
Voltage - Rated:	2.5 V
ESR (Equivalent Series Resistance):	20mOhm @ 100kHz
Lifetime @ Temp.:	5000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	-
Ripple Current @ High Frequency:	3.5 A @ 100 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.335" L x 0.209" W (8.50mm x 5.30mm)
Height - Seated (Max):	0.079" (2.00mm)
Surface Mount Land Size:	0.335" L x 0.209" W (8.50mm x 5.30mm)
Mounting Type:	Surface Mount
Package / Case:	Nonstandard SMD

Nichicon F110E227MDL
