Please send RFQ , we will respond immediately.

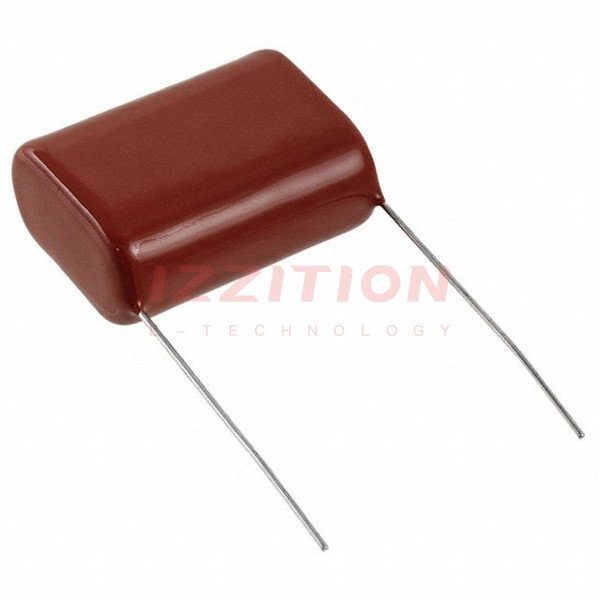

| Part Number | EXH2E805HRPT | EXH2E905HRPT | EXH2E605HRPT | EXH2E705HRPT |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active |
| Capacitance | 8 µF | 9 µF | 6 µF | 7 µF |
| Tolerance | -5%, +10% | -5%, +10% | -5%, +10% | -5%, +10% |
| Voltage Rating - AC | 250V | 250V | 250V | 250V |
| Voltage Rating - DC | - | - | - | - |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.417" L x 0.610" W (36.00mm x 15.50mm) | 1.417" L x 0.650" W (36.00mm x 16.50mm) | 1.417" L x 0.551" W (36.00mm x 14.00mm) | 1.417" L x 0.571" W (36.00mm x 14.50mm) |
| Height - Seated (Max) | 1.122" (28.50mm) | 1.161" (29.50mm) | 1.004" (25.50mm) | 1.083" (27.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.280" (32.50mm) | 1.280" (32.50mm) | 1.280" (32.50mm) | 1.280" (32.50mm) |
| Applications | Motor Run | Motor Run | Motor Run | Motor Run |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
