Nichicon-EEC2G305HQA403 - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	3 µF
Tolerance:	-5%, +10%
Voltage Rating - AC:	400V
Voltage Rating - DC:	-
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-25°C ~ 85°C
Mounting Type:	Chassis Mount
Package / Case:	Rectangular Box
Size / Dimension:	1.457" L x 0.610" W (37.00mm x 15.50mm)
Height - Seated (Max):	1.181" (30.00mm)
Termination:	Quick Connect, Disconnect
Lead Spacing:	-
Applications:	Motor Run
Ratings:	-
Features:	-

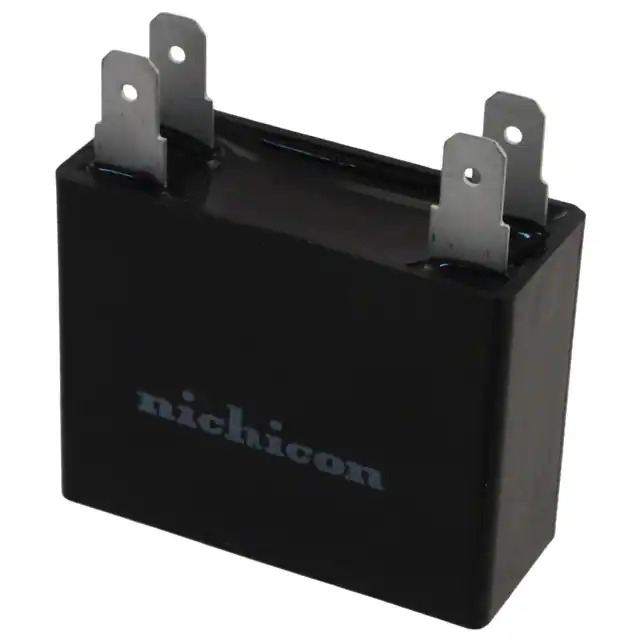

Nichicon EEC2G305HQA403
