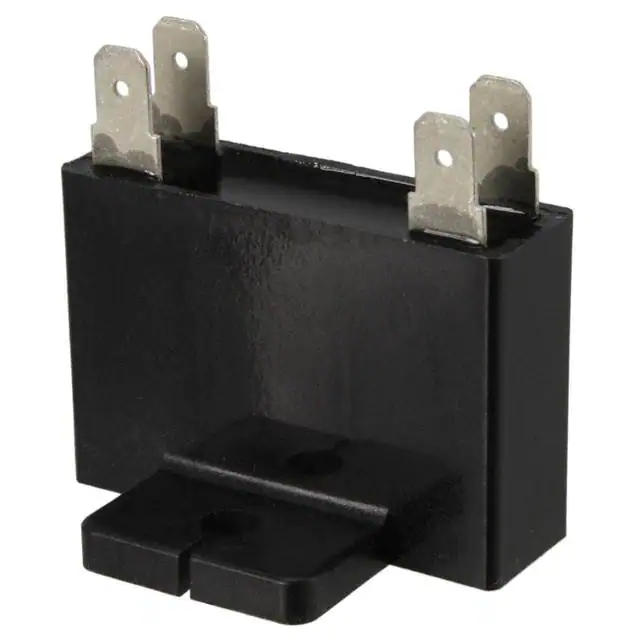

| Part Number | EEC2E405HQA401 | EEC2E205HQA401 | EEC2E305HQA401 |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Capacitance | 4 µF | 2 µF | 3 µF |
| Tolerance | -5%, +10% | -5%, +10% | -5%, +10% |
| Voltage Rating - AC | 250V | 250V | 250V |
| Voltage Rating - DC | - | - | - |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Rectangular Box | Rectangular Box | Rectangular Box |
| Size / Dimension | 1.457" L x 0.453" W (37.00mm x 11.50mm) | 1.457" L x 0.453" W (37.00mm x 11.50mm) | 1.457" L x 0.453" W (37.00mm x 11.50mm) |
| Height - Seated (Max) | 1.024" (26.00mm) | 1.024" (26.00mm) | 1.024" (26.00mm) |
| Termination | Quick Connect, Disconnect | Quick Connect, Disconnect | Quick Connect, Disconnect |
| Lead Spacing | - | - | - |
| Applications | Motor Run | Motor Run | Motor Run |
| Ratings | - | - | - |
| Features | - | - | - |
