Please send RFQ , we will respond immediately.

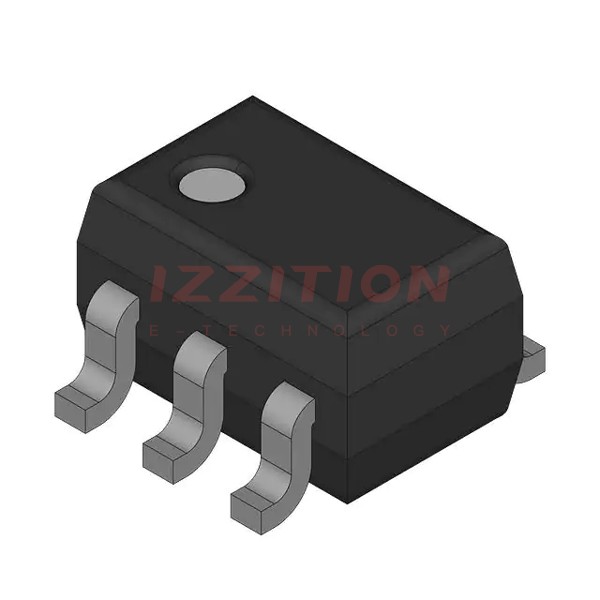

| Part Number | XC7SET08GW,125 | XC7SET02GW,125 | XC7SET04GW,125 | XC7SET08GV,125 |
|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Active |
| Logic Type | - | NOR Gate | Inverter | AND Gate |
| Number of Circuits | - | 1 | 1 | 1 |
| Number of Inputs | - | 2 | 1 | 2 |
| Features | - | - | - | - |
| Voltage - Supply | - | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | - | 1 µA | 1 µA | 1 µA |
| Current - Output High, Low | - | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA |
| Logic Level - Low | - | 0.8V | 0.8V | 0.8V |
| Logic Level - High | - | 2V | 2V | 2V |
| Max Propagation Delay @ V, Max CL | - | 7.5ns @ 5V, 50pF | 7.7ns @ 5V, 50pF | 7.9ns @ 5V, 50pF |
| Operating Temperature | - | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | - | 5-TSSOP | 5-TSSOP | 5-TSOP |
| Package / Case | - | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | SC-74A, SOT-753 |
