Please send RFQ , we will respond immediately.

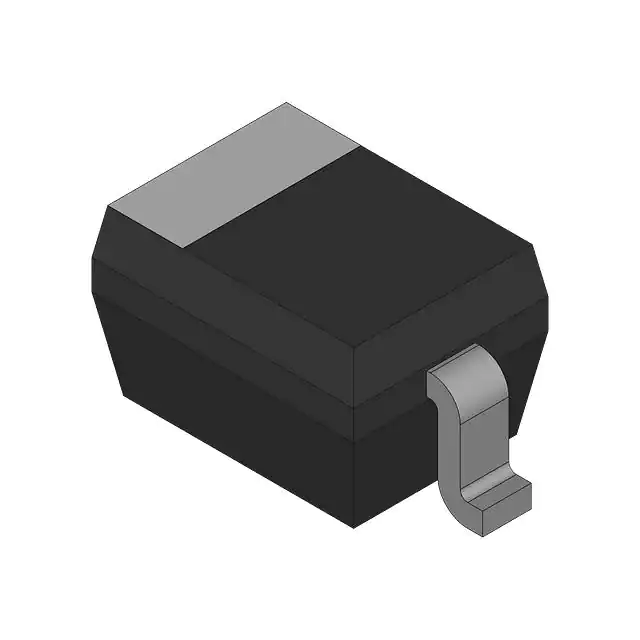

| Part Number | PZU5.1B1,115 | PZU5.1BA,115 | PZU5.1B1A,115 | PZU5.1B3,115 | PZU5.1B2,115 | PZU9.1B1,115 | PZU5.6B1,115 | PZU5.1B,115 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 5.1 V | 5.1 V | 5.1 V | 5.1 V | 5.1 V | 9.1 V | 5.6 V | 5.1 V |
| Tolerance | ±2% | ±5% | ±2% | ±2% | ±2% | ±2% | ±2% | ±5% |
| Power - Max | 310 mW | 320 mW | 320 mW | 310 mW | 310 mW | 310 mW | 310 mW | 310 mW |
| Impedance (Max) (Zzt) | 60 Ohms | 60 Ohms | 60 Ohms | 60 Ohms | 60 Ohms | 10 Ohms | 40 Ohms | 60 Ohms |
| Current - Reverse Leakage @ Vr | 2 µA @ 1.5 V | 2 µA @ 1.5 V | 2 µA @ 1.5 V | 2 µA @ 1.5 V | 2 µA @ 1.5 V | 500 nA @ 6 V | 1 µA @ 2.5 V | 2 µA @ 1.5 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA |
| Operating Temperature | -65°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-90, SOD-323F | SC-76, SOD-323 | SC-76, SOD-323 | SC-90, SOD-323F | SC-90, SOD-323F | SC-90, SOD-323F | SC-90, SOD-323F | SC-90, SOD-323F |
| Supplier Device Package | SOD-323F | SOD-323 | SOD-323 | SOD-323F | SOD-323F | SOD-323F | SOD-323F | SOD-323F |
