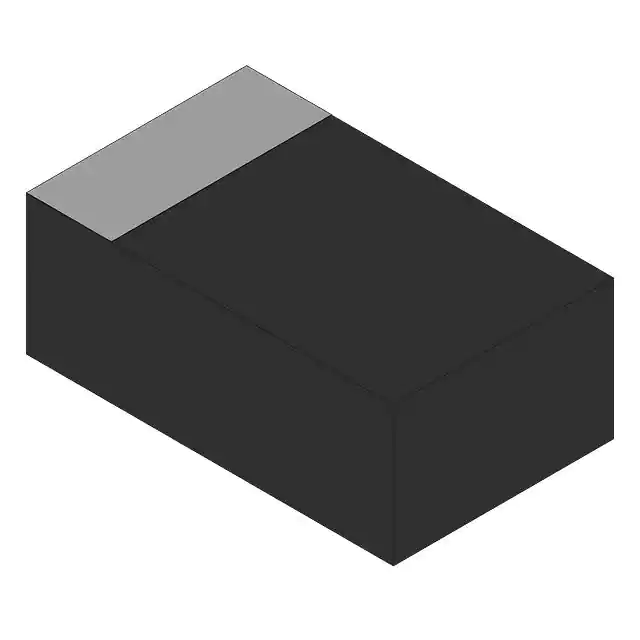

| Part Number | PZU22BL,315 | PZU24BL,315 | PZU27BL,315 | PZU12BL,315 | PZU20BL,315 | PZU22B2L,315 |
|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 22 V | 24 V | 27 V | 12 V | 20 V | 22 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±2% |
| Power - Max | 250 mW | 250 mW | 250 mW | 250 mW | 250 mW | 250 mW |
| Impedance (Max) (Zzt) | 25 Ohms | 30 Ohms | 40 Ohms | 10 Ohms | 20 Ohms | 25 Ohms |
| Current - Reverse Leakage @ Vr | 50 nA @ 17 V | 50 nA @ 19 V | 50 nA @ 21 V | 100 nA @ 9 V | 50 nA @ 15 V | 50 nA @ 17 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-882 | SOD-882 | SOD-882 | SOD-882 | SOD-882 | SOD-882 |
| Supplier Device Package | DFN1006-2 | DFN1006-2 | DFN1006-2 | DFN1006-2 | DFN1006-2 | DFN1006-2 |
