Nexperia USA Inc.-PZU11BL,315 - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	PZU11BL,315	PZU12BL,315	PZU13BL,315	PZU15BL,315	PZU16BL,315	PZU18BL,315	PZU10BL,315	PZU11B2L,315
Manufacturer	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Voltage - Zener (Nom) (Vz)	11 V	12 V	13 V	15 V	16 V	18 V	10 V	11 V
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±2%
Power - Max	250 mW	250 mW	250 mW	250 mW	250 mW	250 mW	250 mW	250 mW
Impedance (Max) (Zzt)	10 Ohms	10 Ohms	10 Ohms	15 Ohms	20 Ohms	20 Ohms	10 Ohms	10 Ohms
Current - Reverse Leakage @ Vr	100 nA @ 8 V	100 nA @ 9 V	100 nA @ 10 V	50 nA @ 11 V	50 nA @ 12 V	50 nA @ 13 V	100 nA @ 7 V	100 nA @ 8 V
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 100 mA	1.1 V @ 100 mA	1.1 V @ 100 mA	1.1 V @ 100 mA	1.1 V @ 100 mA	1.1 V @ 100 mA	1.1 V @ 100 mA	1.1 V @ 100 mA
Operating Temperature	-55°C ~ 150°C	-55°C ~ 150°C	-55°C ~ 150°C	-55°C ~ 150°C	-55°C ~ 150°C	-55°C ~ 150°C	-55°C ~ 150°C	-55°C ~ 150°C
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	SOD-882	SOD-882	SOD-882	SOD-882	SOD-882	SOD-882	SOD-882	SOD-882
Supplier Device Package	DFN1006-2	DFN1006-2	DFN1006-2	DFN1006-2	DFN1006-2	DFN1006-2	DFN1006-2	DFN1006-2

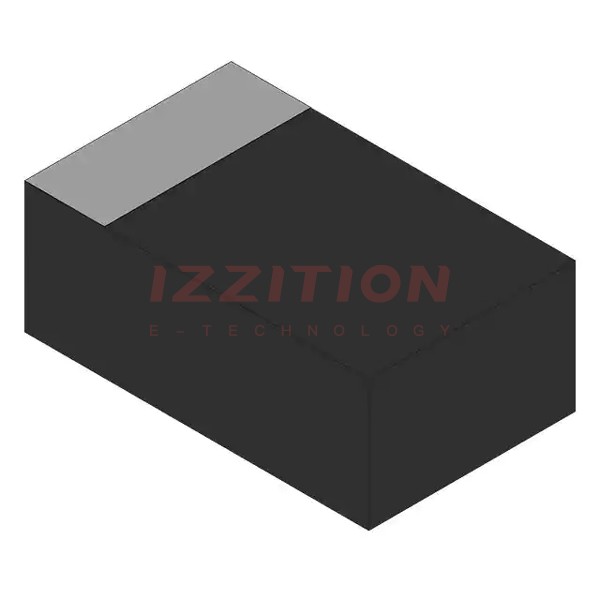

Nexperia USA Inc. PZU11BL,315
