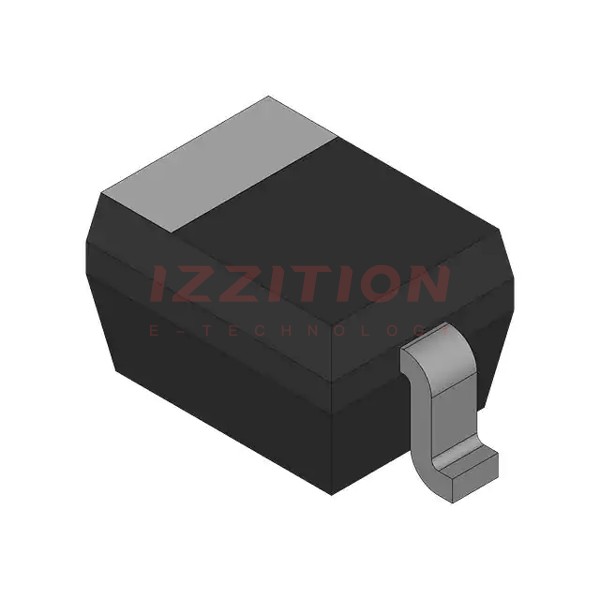

| Part Number | PZU11B2,115 | PZU11BA,115 | PZU16B2,115 | PZU11B3,115 | PZU11B2A,115 | PZU18B2,115 | PZU15B2,115 | PZU14B2,115 | PZU13B2,115 | PZU12B2,115 | PZU10B2,115 | PZU11B,115 | PZU11B1,115 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP Semiconductors | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 11 V | 11 V | 16 V | 11 V | 11 V | 18 V | 15 V | 14 V | 13 V | 12 V | 10 V | 11 V | 11 V |
| Tolerance | ±2% | ±5% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±5% | ±2% |
| Power - Max | 310 mW | 320 mW | 310 mW | 310 mW | 320 mW | 310 mW | 310 mW | 310 mW | 310 mW | 310 mW | 310 mW | 310 mW | 310 mW |
| Impedance (Max) (Zzt) | 10 Ohms | 10 Ohms | 20 Ohms | 10 Ohms | 10 Ohms | 20 Ohms | 15 Ohms | 10 Ohms | 10 Ohms | 10 Ohms | 10 Ohms | 10 Ohms | 10 Ohms |
| Current - Reverse Leakage @ Vr | 100 nA @ 8 V | 100 nA @ 8 V | 50 nA @ 12 V | 100 nA @ 8 V | 100 nA @ 8 V | 50 nA @ 13 V | 50 nA @ 11 V | 100 nA @ 11 V | 100 nA @ 10 V | 100 nA @ 9 V | 100 nA @ 7 V | 100 nA @ 8 V | 100 nA @ 8 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA |
| Operating Temperature | -65°C ~ 150°C | -55°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -55°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-90, SOD-323F | SC-76, SOD-323 | SC-90, SOD-323F | SC-90, SOD-323F | SC-76, SOD-323 | SC-90, SOD-323F | SC-90, SOD-323F | SC-90, SOD-323F | SC-90, SOD-323F | SC-90, SOD-323F | SC-90, SOD-323F | SC-90, SOD-323F | SC-90, SOD-323F |
| Supplier Device Package | SOD-323F | SOD-323 | SOD-323F | SOD-323F | SOD-323 | SOD-323F | SOD-323F | SOD-323F | SOD-323F | SOD-323F | SOD-323F | SOD-323F | SOD-323F |
