Nexperia USA Inc.-PXP400-100QSJ - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	100 V
Current - Continuous Drain (Id) @ 25°C:	1.4A (Ta), 3.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	6V, 10V
Rds On (Max) @ Id, Vgs:	400mOhm @ 1.4A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	15.2 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	544 pF @ 50 V
FET Feature:	-
Power Dissipation (Max):	1.7W (Ta), 10.4W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	MLPAK33
Package / Case:	8-PowerVDFN

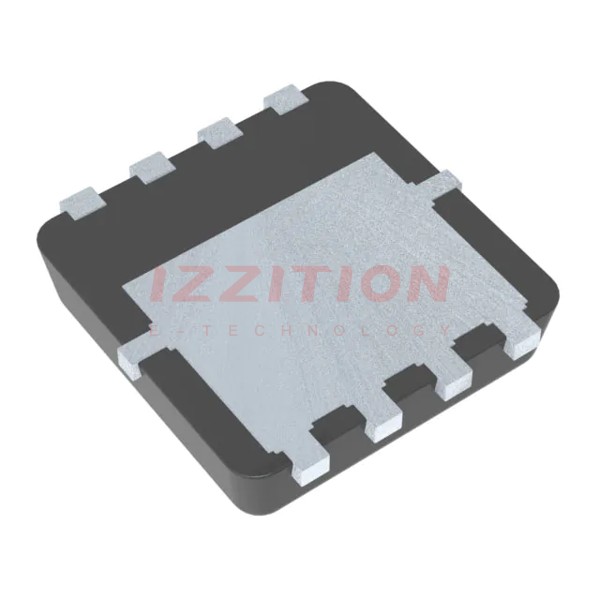

Nexperia USA Inc. PXP400-100QSJ
