Nexperia USA Inc.-PXP020-20QXJ - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	8A (Ta), 23.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	2.5V, 4.5V
Rds On (Max) @ Id, Vgs:	20mOhm @ 7.7A, 4.5V
Vgs(th) (Max) @ Id:	1.25V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	29.1 nC @ 4.5 V
Vgs (Max):	±12V
Input Capacitance (Ciss) (Max) @ Vds:	1900 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	1.7W (Ta), 15W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount

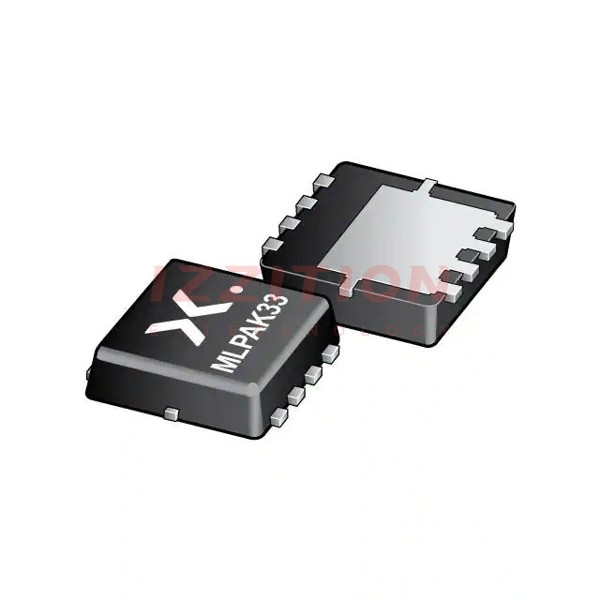

Supplier Device Package:	MLPAK33
Package / Case:	8-PowerVDFN

Nexperia USA Inc. PXP020-20QXJ
