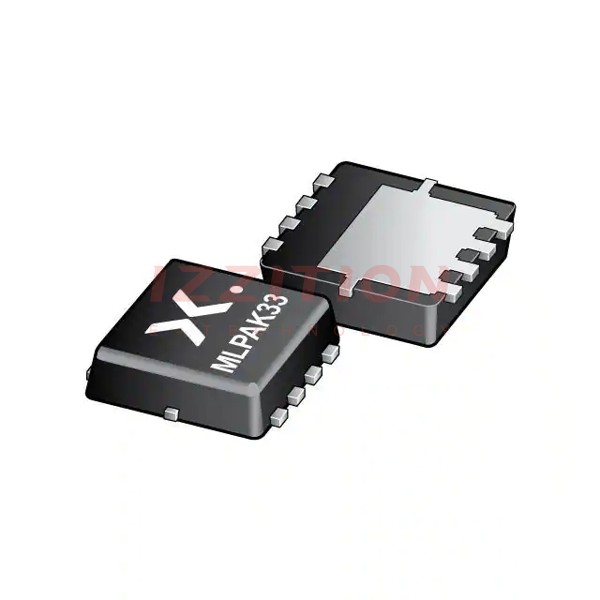

| Part Number | PXP015-30QLJ | PXP012-30QLJ | PXP013-30QLJ |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active |
| FET Type | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 8A (Ta), 24.7A (Tc) | 8.9A (Ta), 38.8A (Tc) | 8.6A (Ta), 42.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 15.8mOhm @ 8.1A, 10V | 12.8mOhm @ 9A, 10V | 13.3mOhm @ 8.6A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA | 2V @ 250µA | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 36.9 nC @ 10 V | 43.4 nC @ 10 V | 50.1 nC @ 10 V |
| Vgs (Max) | ±25V | ±25V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1200 pF @ 15 V | 1400 pF @ 15 V | 1650 pF @ 15 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 1.7W (Ta), 16W (Tc) | 1.7W (Ta), 32W (Tc) | 1.7W (Ta), 40W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | MLPAK33 | MLPAK33 | MLPAK33 |
| Package / Case | 8-PowerVDFN | 8-PowerVDFN | 8-PowerVDFN |
