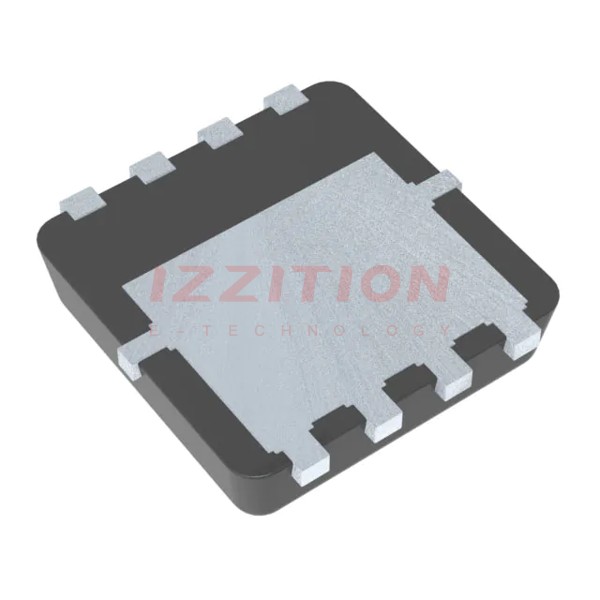

| Part Number | PXN6R7-30QLJ | PXP6R7-30QLJ | PXN4R7-30QLJ |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | P-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 12.7A (Ta), 62A (Tc) | 12.6A (Ta), 66.6A (Tc) | 15A (Ta), 74A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 6.7mOhm @ 12.7A, 10V | 6.7mOhm @ 12.6A, 10V | 4.7mOhm @ 15.2A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA | 2.5V @ 250µA | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 24.8 nC @ 10 V | 133 nC @ 10 V | 46.2 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1150 pF @ 15 V | 4400 pF @ 15 V | 2100 pF @ 15 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 1.7W (Ta), 40.3W (Tc) | 1.8W (Ta), 50W (Tc) | 1.8W (Ta), 42W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | MLPAK33 | MLPAK33 | MLPAK33 |
| Package / Case | 8-PowerVDFN | 8-PowerVDFN | 8-PowerVDFN |
