Nexperia USA Inc.-PXN6R2-25QLJ - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	25 V
Current - Continuous Drain (Id) @ 25°C:	13.1A (Ta), 65A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	6.2mOhm @ 13.1A, 10V
Vgs(th) (Max) @ Id:	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	25.5 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1200 pF @ 12.5 V
FET Feature:	-
Power Dissipation (Max):	1.7W (Ta), 40.3W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	MLPAK33
Package / Case:	8-PowerVDFN

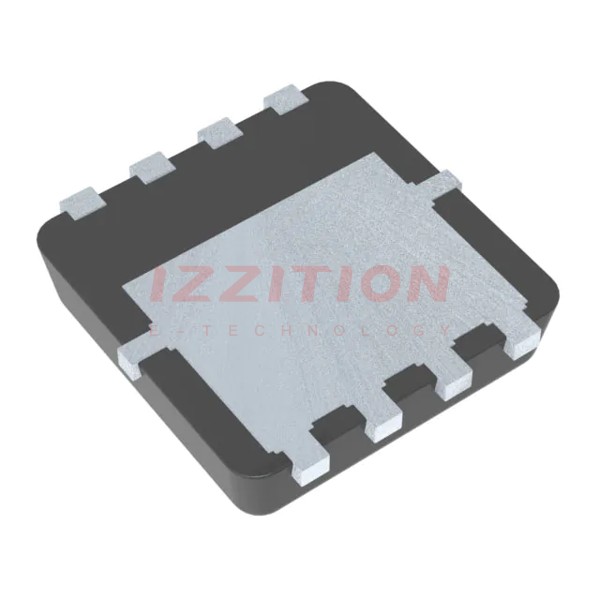

Nexperia USA Inc. PXN6R2-25QLJ
