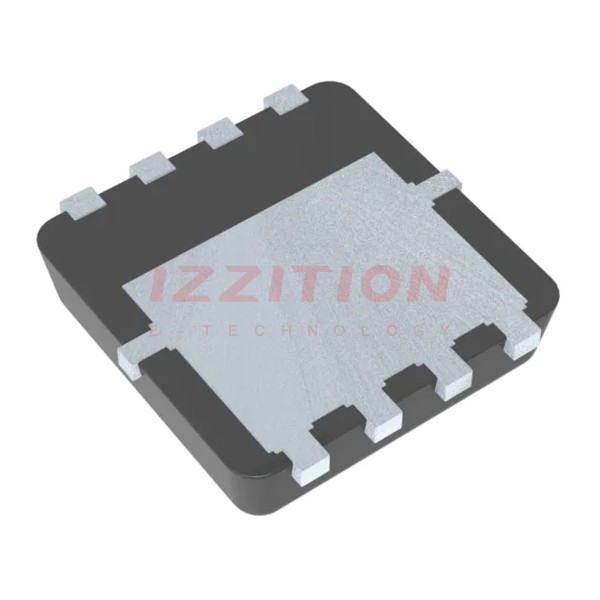

| Part Number | PXN018-30QLJ | PXN010-30QLJ | PXN017-30QLJ |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 7.5A (Ta), 19.2A (Tc) | 10.3A (Ta), 28A (Tc) | 7.9A (Ta), 20A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 18mOhm @ 7.5A, 10V | 10.2mOhm @ 10.3A, 10V | 17.4mOhm @ 7.9A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | 2.2V @ 250µA | 2.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 10.8 nC @ 10 V | 12.3 nC @ 10 V | 7.7 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 447 pF @ 15 V | 580 pF @ 15 V | 350 pF @ 15 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 1.7W (Ta), 10.9W (Tc) | 1.7W (Ta), 12.5W (Tc) | 1.7W (Ta), 10.9W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | MLPAK33 | MLPAK33 | MLPAK33 |
| Package / Case | 8-PowerVDFN | 8-PowerVDFN | 8-PowerVDFN |
