Please send RFQ , we will respond immediately.
| Part Number | PUMH14,115 | PUMH4,115 | PUMH17,115 | PUMH16,115 | PUMH15,115 | PUMH19,115 | PUMH24,115 | PUMH18,115 | PUMB14,115 | PUMD14,115 | PUMH1,115 | PUMH10,115 | PUMH11,115 | PUMH13,115 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Transistor Type | 2 NPN - Pre-Biased (Dual) | 2 NPN - Pre-Biased (Dual) | 2 NPN - Pre-Biased (Dual) | 2 NPN - Pre-Biased (Dual) | 2 NPN - Pre-Biased (Dual) | 2 NPN - Pre-Biased (Dual) | 2 NPN - Pre-Biased (Dual) | 2 NPN - Pre-Biased (Dual) | 2 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) | 2 NPN - Pre-Biased (Dual) | 2 NPN - Pre-Biased (Dual) | 2 NPN - Pre-Biased (Dual) | 2 NPN - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | 100mA | 100mA | 100mA | 100mA | 100mA | 100mA | 20mA | 100mA | 100mA | 100mA | 100mA | 100mA | 100mA | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V |
| Resistor - Base (R1) | 47kOhms | 10kOhms | 47kOhms | 22kOhms | 4.7kOhms | 22kOhms | 100kOhms | 4.7kOhms | 47kOhms | 47kOhms | 22kOhms | 2.2kOhms | 10kOhms | 4.7kOhms |
| Resistor - Emitter Base (R2) | - | - | 22kOhms | 47kOhms | 4.7kOhms | - | 100kOhms | 10kOhms | - | - | 22kOhms | 47kOhms | 10kOhms | 47kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 1mA, 5V | 200 @ 1mA, 5V | 60 @ 5mA, 5V | 80 @ 5mA, 5V | 30 @ 10mA, 5V | 100 @ 1mA, 5V | 80 @ 5mA, 5V | 50 @ 10mA, 5V | 100 @ 1mA, 5V | 100 @ 1mA, 5V | 60 @ 5mA, 5V | 100 @ 10mA, 5V | 30 @ 5mA, 5V | 100 @ 10mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 150mV @ 500µA, 10mA | 150mV @ 500µA, 10mA | 150mV @ 500µA, 10mA | 150mV @ 500µA, 10mA | 150mV @ 500µA, 10mA | 150mV @ 500µA, 10mA | 150mV @ 250µA, 5mA | 100mV @ 500µA, 10mA | 150mV @ 500µA, 10mA | 150mV @ 500µA, 10mA | 150mV @ 500µA, 10mA | 100mV @ 250µA, 5mA | 150mV @ 500µA, 10mA | 100mV @ 250µA, 5mA |
| Current - Collector Cutoff (Max) | 1µA | 1µA | 1µA | 1µA | 1µA | 1µA | 1µA | 1µA | 1µA | 1µA | 100nA | 1µA | 1µA | 1µA |
| Frequency - Transition | - | - | - | - | - | - | - | - | - | - | 230MHz | - | - | - |
| Power - Max | 300mW | 300mW | 300mW | 300mW | 300mW | 300mW | 300mW | 300mW | 300mW | 300mW | 300mW | 300mW | 300mW | 300mW |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

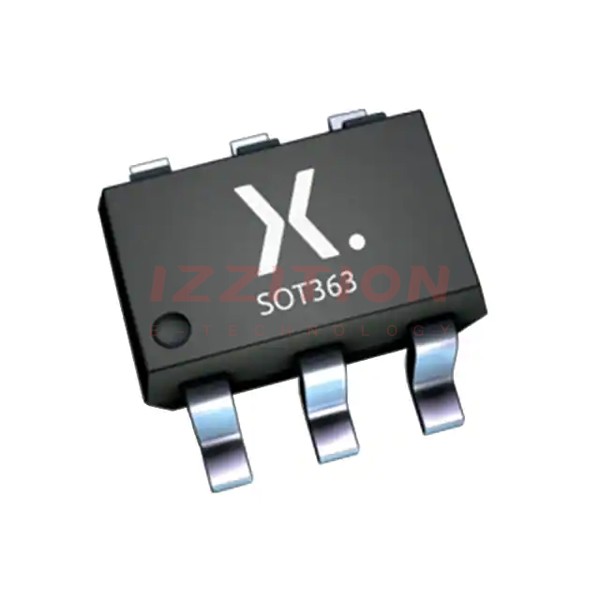

| Package / Case | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | 6-TSSOP | 6-TSSOP | 6-TSSOP | 6-TSSOP | 6-TSSOP | 6-TSSOP | 6-TSSOP | 6-TSSOP | SOT-363 | 6-TSSOP | 6-TSSOP | 6-TSSOP | 6-TSSOP | 6-TSSOP |
