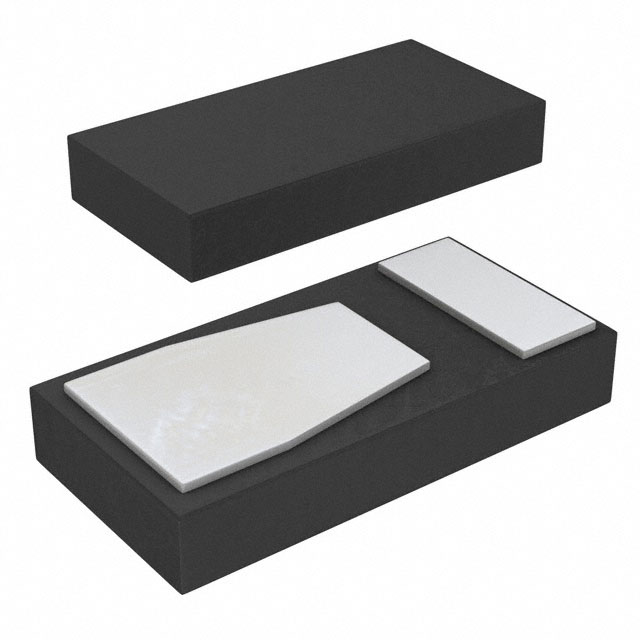

| Part Number | PTVS5V0Z1USKNYL | PTVS5V0Z1USKYL | PTVS5V0Z1USKPYL |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Obsolete | Active | Active |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) | 5V (Max) | 5V (Max) |
| Voltage - Breakdown (Min) | 6.4V | 6.4V | 6.4V |
| Voltage - Clamping (Max) @ Ipp | 12V | 12V | 12V |
| Current - Peak Pulse (10/1000µs) | 20A | 20A | 20A |
| Power - Peak Pulse | 200W | 200W | 200W |
| Power Line Protection | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | 1200pF @ 1MHz | 1200pF @ 1MHz | 1200pF @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | DSN1608-2 | DSN1608-2 | DSN1608-2 |
