Please send RFQ , we will respond immediately.
| Part Number | PTVS22VZ1USKYL | PTVS26VZ1USKYL | PTVS12VZ1USKYL | PTVS20VZ1USKYL |
|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | NXP Semiconductors | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active |
| Type | - | Zener | - | Zener |
| Unidirectional Channels | - | 1 | - | 1 |
| Bidirectional Channels | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | - | 26V (Max) | - | 20V (Max) |
| Voltage - Breakdown (Min) | - | 28.9V | - | 22.2V |
| Voltage - Clamping (Max) @ Ipp | - | 46V | - | 36.9V |
| Current - Peak Pulse (10/1000µs) | - | 4.5A | - | 6A |
| Power - Peak Pulse | - | 200W | - | 220W |
| Power Line Protection | - | No | - | No |
| Applications | - | General Purpose | - | General Purpose |
| Capacitance @ Frequency | - | 215pF @ 1MHz | - | 260pF @ 1MHz |
| Operating Temperature | - | -40°C ~ 125°C (TA) | - | -40°C ~ 125°C (TA) |
| Mounting Type | - | Surface Mount | - | Surface Mount |
| Package / Case | - | 0603 (1608 Metric) | - | 0603 (1608 Metric) |

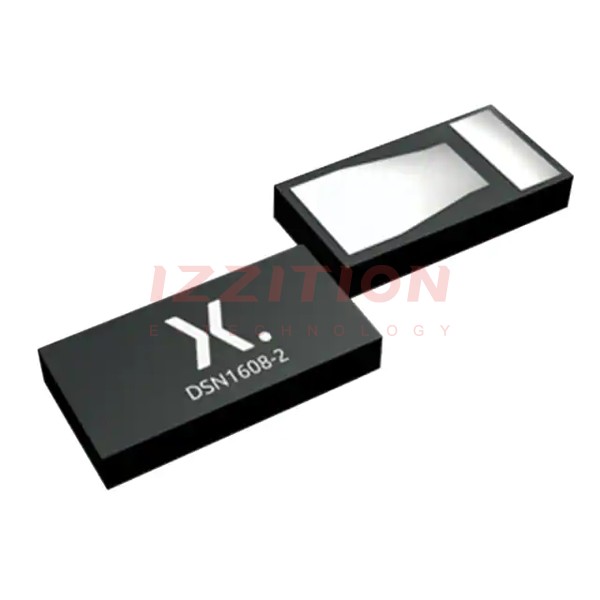

| Supplier Device Package | - | DSN1608-2 | - | DSN1608-2 |
