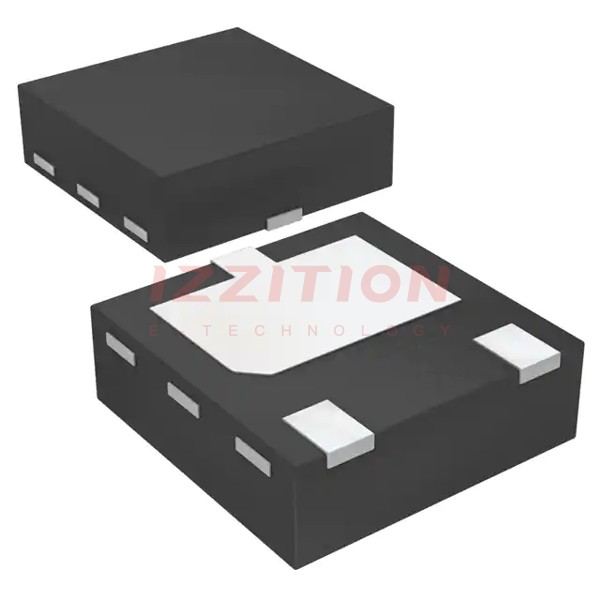

| Part Number | PTVS20VU1UPAZ | PTVS26VU1UPAZ | PTVS22VU1UPAZ | PTVS24VU1UPAZ | PTVS10VU1UPAZ |
|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 20V (Max) | 26V (Max) | 22V (Max) | 24V (Max) | 10V (Max) |
| Voltage - Breakdown (Min) | 22.2V | 28.9V | 24.4V | 26.7V | 11.1V |
| Voltage - Clamping (Max) @ Ipp | 32.5V | 42.1V | 35.5V | 38.8V | 17V |
| Current - Peak Pulse (10/1000µs) | 9.2A | 7A | 8.4A | 7.7A | 17.6A |
| Power - Peak Pulse | 300W | 300W | 300W | 300W | 300W |
| Power Line Protection | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | 800pF @ 1MHz | - | 700pF @ 1MHz | 650pF @ 1MHz | - |
| Operating Temperature | -55°C ~ 150°C (TA) | -55°C ~ 150°C (TA) | -55°C ~ 150°C (TA) | -55°C ~ 150°C (TA) | -55°C ~ 150°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 3-PowerUDFN | 3-PowerUDFN | 3-PowerUDFN | 3-PowerUDFN | 3-PowerUDFN |
| Supplier Device Package | 3-HUSON (2x2) | 3-HUSON (2x2) | 3-HUSON (2x2) | 3-HUSON (2x2) | 3-HUSON (2x2) |
