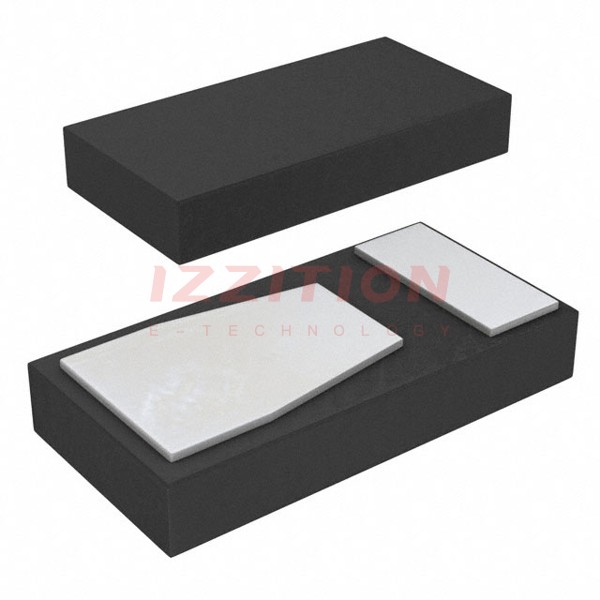

| Part Number | PTVS10VZ1USKYL | PTVS15VZ1USKYL | PTVS20VZ1USKYL | PTVS18VZ1USKYL | PTVS12VZ1USKYL |
|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP Semiconductors | NXP Semiconductors |
| Product Status | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | - | - |
| Unidirectional Channels | 1 | 1 | 1 | - | - |
| Bidirectional Channels | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 10V (Max) | 15V (Max) | 20V (Max) | - | - |
| Voltage - Breakdown (Min) | 11.1V | 16.7V | 22.2V | - | - |
| Voltage - Clamping (Max) @ Ipp | 18.2V | 27.4V | 36.9V | - | - |
| Current - Peak Pulse (10/1000µs) | 12.5A | 7.5A | 6A | - | - |
| Power - Peak Pulse | 220W | 200W | 220W | - | - |
| Power Line Protection | No | No | No | - | - |
| Applications | General Purpose | General Purpose | General Purpose | - | - |
| Capacitance @ Frequency | 500pF @ 1MHz | 340pF @ 1MHz | 260pF @ 1MHz | - | - |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | - | - |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | - | - |
| Supplier Device Package | DSN1608-2 | DSN1608-2 | DSN1608-2 | - | - |
