| Part Number | PSMNR70-40SSHJ | PSMNR90-40SSHJ |
|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 425A (Ta) | 375A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 0.7mOhm @ 25A, 10V | 0.9mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | 3.6V @ 1mA | 3.6V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 202 nC @ 10 V | 166 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 15719 pF @ 25 V | 12888 pF @ 25 V |
| FET Feature | Schottky Diode (Body) | Schottky Diode (Body) |
| Power Dissipation (Max) | 375W (Ta) | 375W (Ta) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

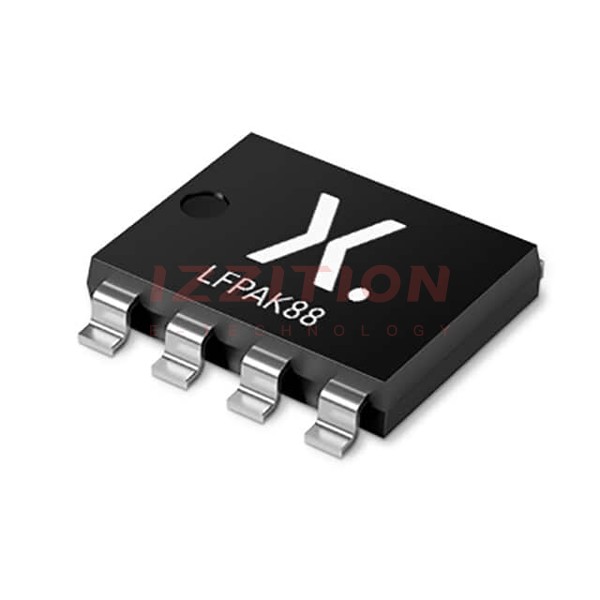

| Supplier Device Package | LFPAK88 (SOT1235) | LFPAK88 (SOT1235) |
| Package / Case | SOT-1235 | SOT-1235 |
