| Part Number | PSMN9R0-25MLC,115 | PSMN9R0-25YLC,115 |
|---|---|---|
| Manufacturer | Nexperia USA Inc. | NXP USA Inc. |
| Product Status | Active | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 55A (Tc) | 46A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 8.65mOhm @ 15A, 10V | 9.1mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 1.95V @ 1mA | 1.95V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 11.7 nC @ 10 V | 12 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 705 pF @ 12.5 V | 694 pF @ 12 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 45W (Tc) | 34W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

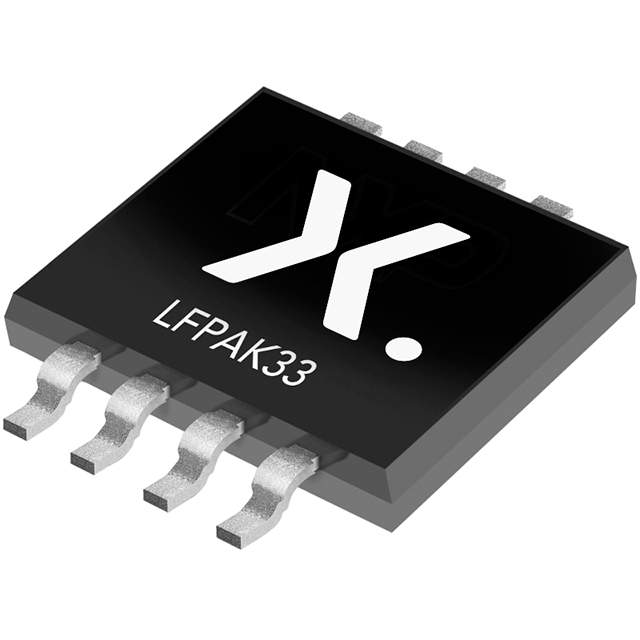

| Supplier Device Package | LFPAK33 | LFPAK56, Power-SO8 |
| Package / Case | SOT-1210, 8-LFPAK33 (5-Lead) | SC-100, SOT-669 |
