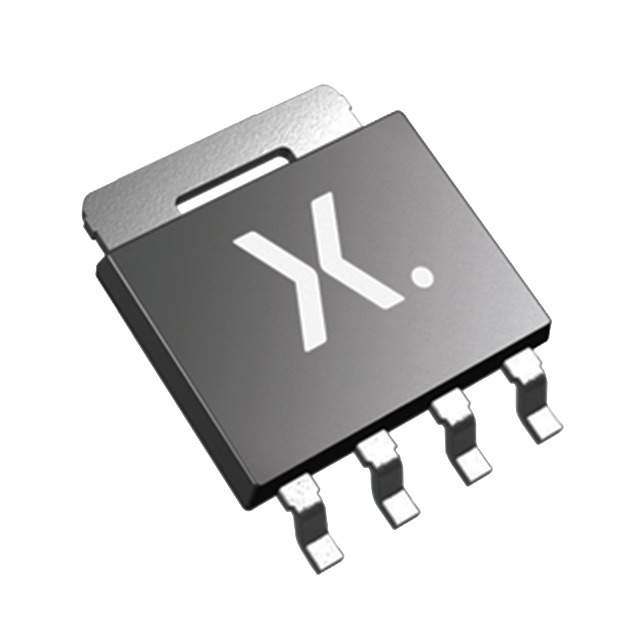

| Part Number | PSMN4R0-30YLDX | PSMN6R0-30YLDX | PSMN2R0-30YLDX | PSMN3R0-30YLDX |
|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 95A (Tc) | 66A (Tc) | 100A (Tc) | 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 4mOhm @ 25A, 10V | 6mOhm @ 15A, 10V | 2mOhm @ 25A, 10V | 3.1mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 1mA | 2.2V @ 1mA | 2.2V @ 1mA | 2.2V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 19.4 nC @ 10 V | 13.7 nC @ 10 V | 46 nC @ 10 V | 46.4 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1272 pF @ 15 V | 832 pF @ 15 V | 2969 pF @ 15 V | 2939 pF @ 15 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 64W (Tc) | 47W (Tc) | 142W (Tc) | 91W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | LFPAK56, Power-SO8 | LFPAK56, Power-SO8 | LFPAK56, Power-SO8 | LFPAK56, Power-SO8 |
| Package / Case | SC-100, SOT-669 | SC-100, SOT-669 | SC-100, SOT-669 | SC-100, SOT-669 |
