Please send RFQ , we will respond immediately.

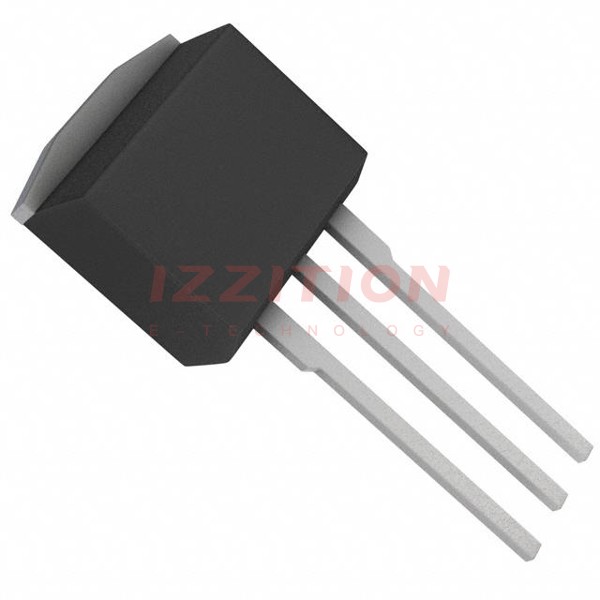

| Part Number | PSMN1R1-30EL,127 | PSMN1R1-30PL,127 |
|---|---|---|
| Manufacturer | Nexperia USA Inc. | NXP Semiconductors |
| Product Status | Obsolete | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 120A (Tc) | 120A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 1.3mOhm @ 25A, 10V | 1.3mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 1mA | 2.2V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 243 nC @ 10 V | 243 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 14850 pF @ 15 V | 14850 pF @ 15 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 338W (Tc) | 338W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | I2PAK | TO-220AB |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-220-3 |
