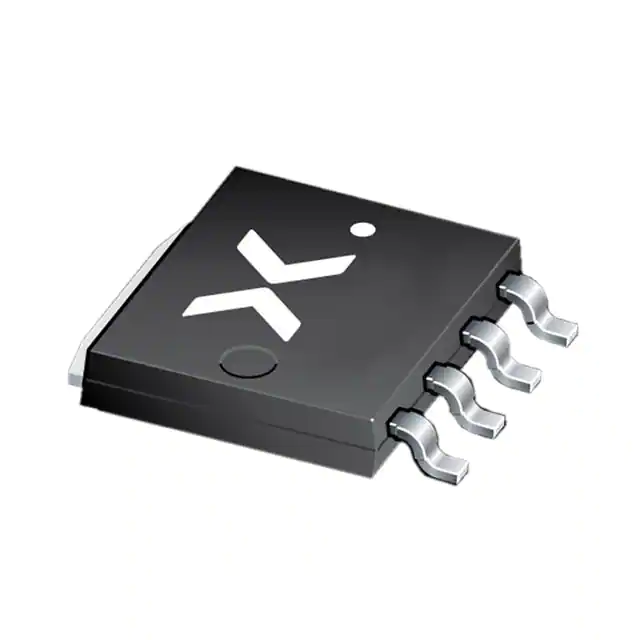

| Part Number | PSMN1R0-40ULDX | PSMN1R0-40YLDX |
|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 280A (Ta) | 280A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | - | 1.1mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | - | 2.2V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 127 nC @ 10 V | 127 nC @ 10 V |
| Vgs (Max) | - | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | - | 8845 pF @ 20 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 164W | 198W (Tc) |
| Operating Temperature | 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | LFPAK56, Power-SO8 | LFPAK56, Power-SO8 |
| Package / Case | SOT-1023, 4-LFPAK | SC-100, SOT-669 |
