PSMN013-40VLDX
  • Share:

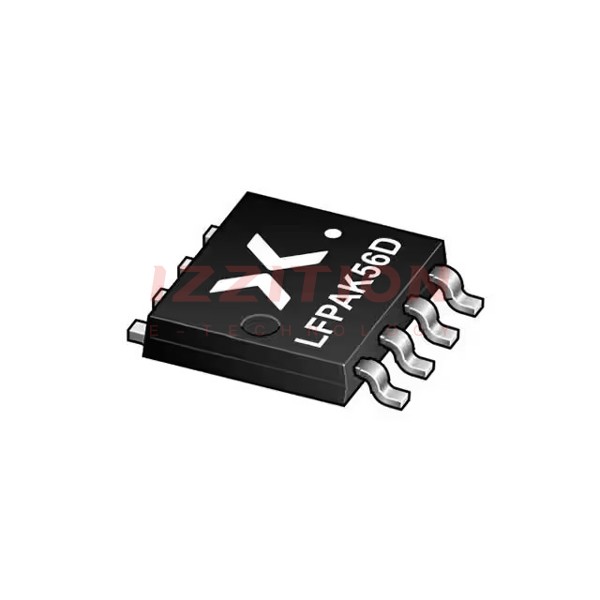

Nexperia USA Inc. PSMN013-40VLDX

Manufacturer No:
PSMN013-40VLDX
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Datasheet:
PSMN013-40VLDX Datasheet
ECAD Model:
-
Description:
PSMN013-40VLD - DUAL N-CHANNEL 4
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

FET Type:2 N-Channel (Half Bridge)
FET Feature:Standard
Drain to Source Voltage (Vdss):40V
Current - Continuous Drain (Id) @ 25°C:42A (Ta)
Rds On (Max) @ Id, Vgs:13.6mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:2.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:19.4nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:1160pF @ 25V
Power - Max:46W (Ta)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Package / Case:SOT-1205, 8-LFPAK56
Supplier Device Package:LFPAK56D
0 Remaining View Similar

In Stock

$1.20
6

Please send RFQ , we will respond immediately.
