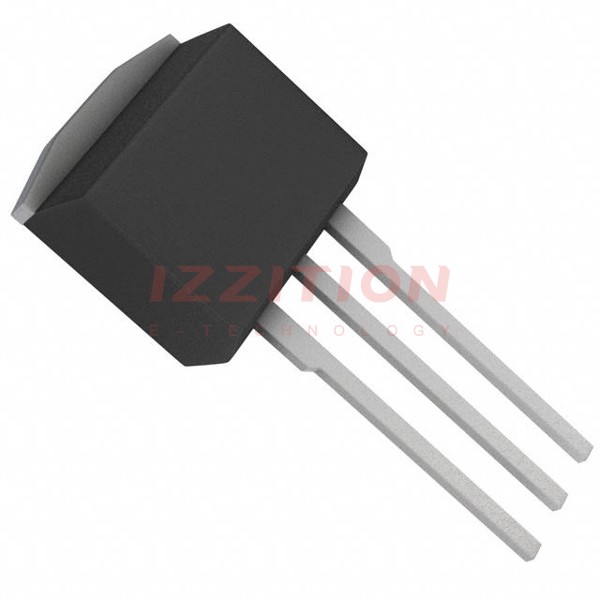

| Part Number | PSMN013-100ES,127 | PSMN013-100PS,127 | PSMN013-100XS,127 |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Active | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 68A (Tc) | 68A (Tc) | 35.2A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 13.9mOhm @ 15A, 10V | 13.9mOhm @ 15A, 10V | 13.9mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1mA | 4V @ 1mA | 4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 59 nC @ 10 V | 59 nC @ 10 V | 57.5 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3195 pF @ 50 V | 3195 pF @ 50 V | 3195 pF @ 50 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 170W (Tc) | 170W (Tc) | 48.4W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | I2PAK | TO-220AB | TO-220F |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-220-3 | TO-220-3 Full Pack, Isolated Tab |
