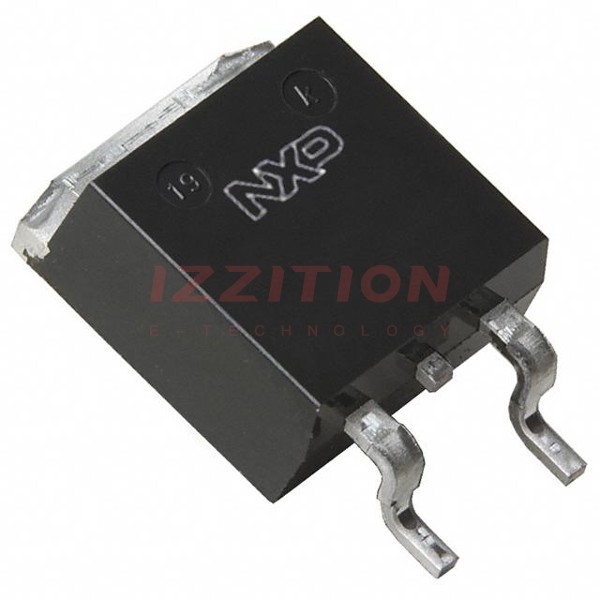

| Part Number | PSMN005-75B,118 | PSMN008-75B,118 | PSMN005-55B,118 |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 75 V | 75 V | 55 V |
| Current - Continuous Drain (Id) @ 25°C | 75A (Tc) | 75A (Tc) | 75A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 5mOhm @ 25A, 10V | 8.5mOhm @ 25A, 10V | 5.8mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1mA | 4V @ 1mA | 2V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 165 nC @ 10 V | 122.8 nC @ 10 V | 103 nC @ 5 V |
| Vgs (Max) | ±20V | ±20V | ±15V |
| Input Capacitance (Ciss) (Max) @ Vds | 8250 pF @ 25 V | 5260 pF @ 25 V | 6500 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 230W (Tc) | 230W (Tc) | 230W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | D2PAK | D2PAK | D2PAK |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
