Please send RFQ , we will respond immediately.

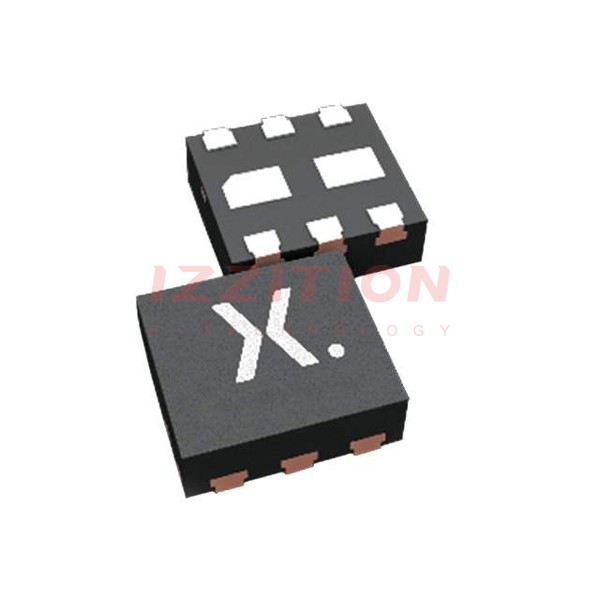

| Part Number | PRMH9Z | PQMH9Z | PRMH2Z |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active |
| Transistor Type | 2 NPN - Pre-Biased (Dual) | 2 NPN - Pre-Biased (Dual) | 2 NPN - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | 100mA | 100mA | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V | 50V | 50V |
| Resistor - Base (R1) | 10kOhms | 10kOhms | 47kOhms |
| Resistor - Emitter Base (R2) | 47kOhms | 47kOhms | 47kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 5mA, 5V | 100 @ 5mA, 5V | 80 @ 5mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 100mV @ 250µA, 5mA | 100mV @ 250µA, 5mA | 150mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 1µA | 1µA | 1µA |
| Frequency - Transition | 230MHz | 230MHz | 230MHz |
| Power - Max | 480mW | 230mW | 480mW |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-XFDFN Exposed Pad | 6-XFDFN Exposed Pad | 6-XFDFN Exposed Pad |
| Supplier Device Package | DFN1412-6 | DFN1010B-6 | DFN1412-6 |
