| Part Number | PQMD13Z | PRMD13Z | PQMD16Z | PQMD3Z | PQMH13Z | PQMD10Z | PQMD12Z |
|---|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) | 1 NPN Pre-Biased, 1 PNP | 1 NPN, 1 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) | 2 NPN - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | 100mA | 100mA | 100mA | 100mA | 100mA | 100mA | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V | 50V | 50V | 50V | 50V | 50V | 50V |
| Resistor - Base (R1) | 4.7kOhms | 4.7kOhms | 22kOhms | 10kOhms | 4.7kOhms | 2.2kOhms | 47kOhms |
| Resistor - Emitter Base (R2) | 47kOhms | 47kOhms | 47kOhms | 10kOhms | 47kOhms | 47kOhms | 47kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10mA, 5V | 100 @ 10mA, 5V | 80 @ 5mA, 5V | 30 @ 5mA, 5V | 100 @ 10mA, 5V | 100 @ 10mA, 5V | 80 @ 5mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 100mV @ 250µA, 5mA | 100mV @ 250µA, 5mA | 150mV @ 500µA, 10mA | 150mV @ 500µA, 10mA | 100mV @ 250µA, 5mA | 100mV @ 250µA, 5mA | 150mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 1µA | 1µA | 1µA | 1µA | 1µA | 1µA | 100nA (ICBO) |
| Frequency - Transition | 230MHz, 180MHz | 230MHz | 230MHz, 180MHz | 230MHz, 180MHz | 230MHz | 230MHz, 180MHz | 230MHz, 180MHz |
| Power - Max | 350mW | 480mW | 350mW | 230mW | 230mW | 230mW | 350mW |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

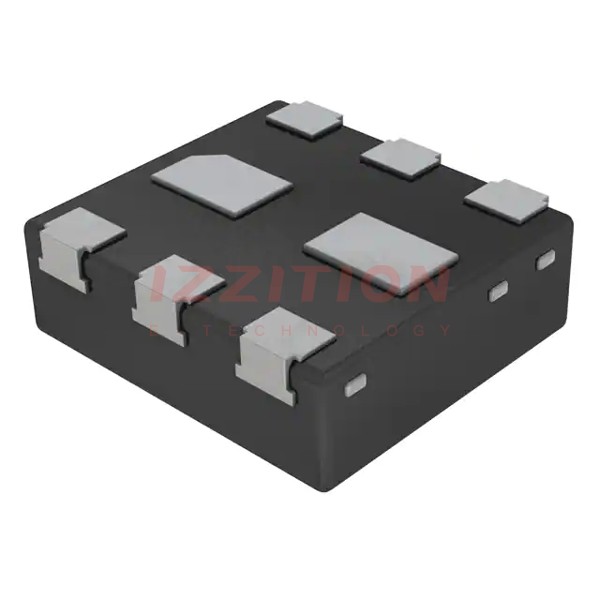

| Package / Case | 6-XFDFN Exposed Pad | 6-XFDFN Exposed Pad | 6-XFDFN Exposed Pad | 6-XFDFN Exposed Pad | 6-XFDFN Exposed Pad | 6-XFDFN Exposed Pad | 6-XFDFN Exposed Pad |
| Supplier Device Package | DFN1010B-6 | DFN1412-6 | DFN1010B-6 | DFN1010B-6 | DFN1010B-6 | DFN1010B-6 | DFN1010B-6 |
