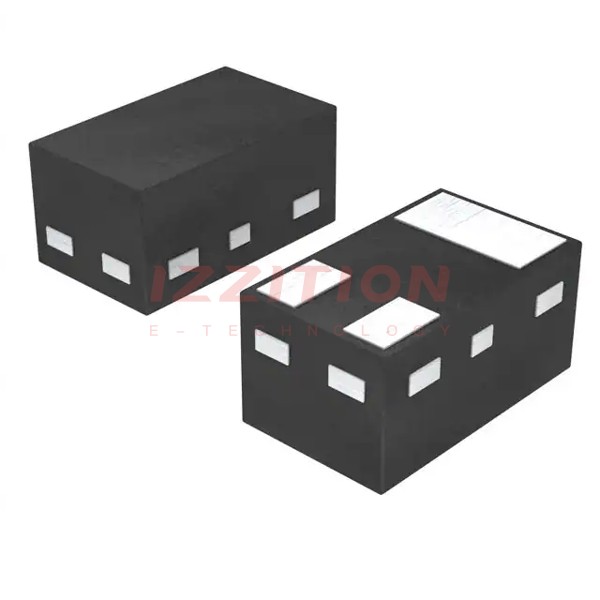

| Part Number | PMZB950UPELYL | PMZB950UPEYL | PMZ950UPELYL |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active |
| FET Type | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 500mA (Ta) | 500mA (Ta) | 500mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.2V, 4.5V | 1.2V, 4.5V | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 1.4Ohm @ 500mA, 4.5V | 1.4Ohm @ 500mA, 4.5V | 1.4Ohm @ 500mA, 4.5V |
| Vgs(th) (Max) @ Id | 950mV @ 250µA | 950mV @ 250µA | 950mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 2.1 nC @ 4.5 V | 2.1 nC @ 4.5 V | 2.1 nC @ 4.5 V |
| Vgs (Max) | ±8V | ±8V | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 43 pF @ 10 V | 43 pF @ 10 V | 43 pF @ 10 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 360mW (Ta) | 360mW (Ta), 2.7W (Tc) | 360mW (Ta), 2.7W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | DFN1006B-3 | DFN1006B-3 | SOT-883 |
| Package / Case | 3-XFDFN | 3-XFDFN | SC-101, SOT-883 |
