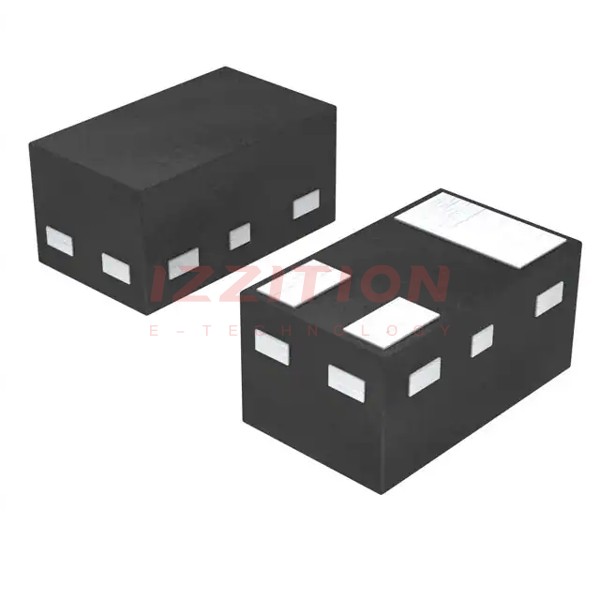

| Part Number | PMZB350UPE,315 | PMZB320UPE,315 |
|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active |
| FET Type | P-Channel | - |
| Technology | MOSFET (Metal Oxide) | - |
| Drain to Source Voltage (Vdss) | 20 V | - |
| Current - Continuous Drain (Id) @ 25°C | 1A (Ta) | - |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V | - |
| Rds On (Max) @ Id, Vgs | 450mOhm @ 300mA, 4.5V | - |
| Vgs(th) (Max) @ Id | 950mV @ 250µA | - |
| Gate Charge (Qg) (Max) @ Vgs | 1.9 nC @ 4.5 V | - |
| Vgs (Max) | ±8V | - |
| Input Capacitance (Ciss) (Max) @ Vds | 127 pF @ 10 V | - |
| FET Feature | - | - |
| Power Dissipation (Max) | 360mW (Ta), 3.125W (Tc) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | - |
| Mounting Type | Surface Mount | - |
| Supplier Device Package | DFN1006B-3 | - |
| Package / Case | 3-XFDFN | - |
