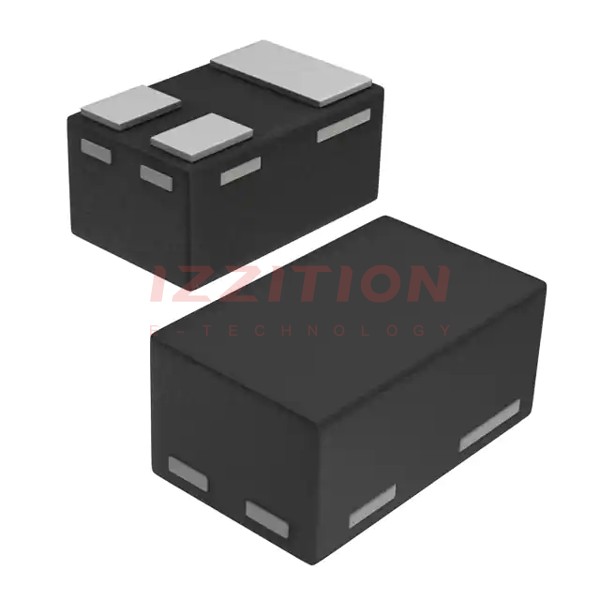

| Part Number | PMZ200UNEYL | PMZ600UNEYL | PMZB200UNEYL | PMZ290UNEYL |
|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP Semiconductors |
| Product Status | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 20 V | 30 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 1.4A (Ta) | 600mA (Ta) | 1.4A (Ta) | 1A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V | 1.2V, 4.5V | 1.5V, 4.5V | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 250mOhm @ 1.4A, 4.5V | 620mOhm @ 600mA, 4.5V | 250mOhm @ 1.4A, 4.5V | 380mOhm @ 500mA, 4.5V |
| Vgs(th) (Max) @ Id | 950mV @ 250µA | 950mV @ 250µA | 950mV @ 250µA | 950mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 2.7 nC @ 4.5 V | 0.7 nC @ 4.5 V | 2.7 nC @ 4.5 V | 0.68 nC @ 4.5 V |
| Vgs (Max) | ±8V | ±8V | ±8V | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 89 pF @ 15 V | 21.3 pF @ 10 V | 89 pF @ 15 V | 83 pF @ 10 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 350mW (Ta), 6.25W (Tc) | 360mW (Ta), 2.7W (Tc) | 350mW (Ta), 6.25W (Tc) | 360mW (Ta), 2.7W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SOT-883 | SOT-883 | DFN1006B-3 | SOT-883 |
| Package / Case | SC-101, SOT-883 | SC-101, SOT-883 | 3-XFDFN | SC-101, SOT-883 |
