Nexperia USA Inc.-PMX400UPZ - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	900mA (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.8V, 4.5V
Rds On (Max) @ Id, Vgs:	500mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id:	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	2.4 nC @ 4.5 V
Vgs (Max):	±12V
Input Capacitance (Ciss) (Max) @ Vds:	146 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	500mW (Ta), 4.7W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount

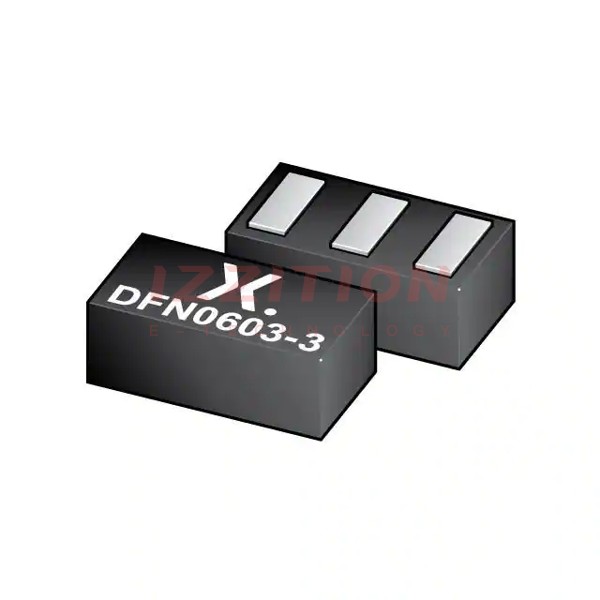

Supplier Device Package:	DFN0603-3 (SOT8013)
Package / Case:	0201 (0603 Metric)

Nexperia USA Inc. PMX400UPZ
