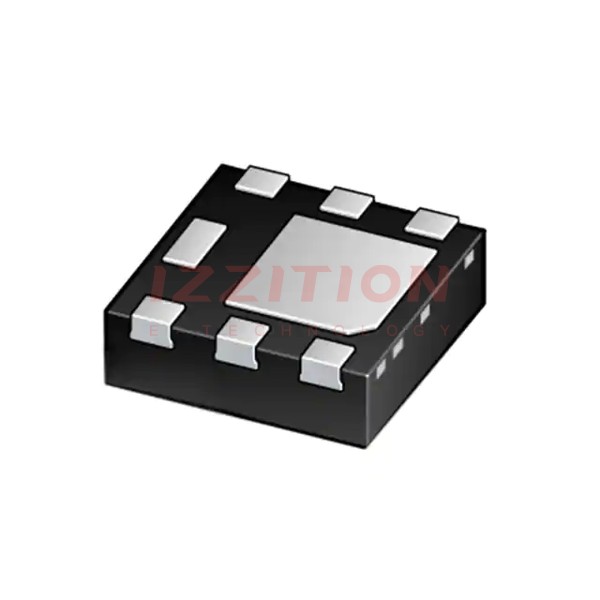

| Part Number | PMPB55ENEAX | PMPB85ENEAX | PMPB95ENEAX | PMPB55XNEAX | PMPB25ENEAX | PMPB50ENEAX |
|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 60 V | 80 V | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 4A (Ta) | 3A (Ta) | 2.8A (Ta) | 3.8A (Ta) | 7.2A (Ta) | 5.1A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 2.5V, 4.5V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 56mOhm @ 10A, 10V | 95mOhm @ 3A, 10V | 105mOhm @ 2.8A, 10V | 72mOhm @ 3.8A, 4.5V | 24mOhm @ 7.2A, 10V | 43mOhm @ 5.1A, 10V |
| Vgs(th) (Max) @ Id | 2.7V @ 250µA | 2.7V @ 250µA | 2.7V @ 250µA | 1.25V @ 250µA | 2.5V @ 250µA | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 12 nC @ 10 V | 9.2 nC @ 10 V | 14.9 nC @ 10 V | 5 nC @ 4.5 V | 19 nC @ 10 V | 10 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±12V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 435 pF @ 30 V | 305 pF @ 30 V | 504 pF @ 40 V | 255 pF @ 15 V | 607 pF @ 15 V | 271 pF @ 15 V |
| FET Feature | - | - | - | - | - | - |
| Power Dissipation (Max) | 1.65W (Ta) | 1.6W (Ta), 15.6W (Tc) | 1.6W (Ta), 15.6W (Tc) | 550mW (Ta) | 2.08W (Ta) | 1.9W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | DFN2020MD-6 | DFN2020MD-6 | DFN2020MD-6 | DFN2020MD-6 | DFN2020MD-6 | DFN2020MD-6 |
| Package / Case | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad |
