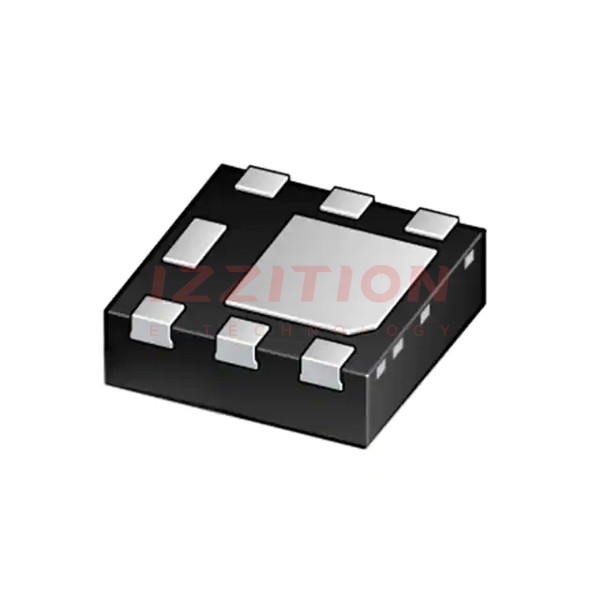

| Part Number | PMPB29XNE,115 | PMPB29XPE,115 | PMPB23XNE,115 |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | P-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 20 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 5A (Ta) | 5A (Ta) | 7A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V | 1.8V, 4.5V | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 33mOhm @ 5A, 4.5V | 32.5mOhm @ 5A, 4.5V | 22mOhm @ 7A, 4.5V |
| Vgs(th) (Max) @ Id | 900mV @ 250µA | 900mV @ 250µA | 900mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 18.6 nC @ 4.5 V | 45 nC @ 4.5 V | 17 nC @ 4.5 V |
| Vgs (Max) | ±12V | ±12V | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 1150 pF @ 15 V | 2970 pF @ 10 V | 1136 pF @ 10 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 1.7W (Ta), 12.5W (Tc) | 1.7W (Ta), 12.5W (Tc) | 1.7W (Ta), 12.5W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | DFN2020MD-6 | DFN2020MD-6 | DFN1010B-6 |
| Package / Case | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad | 6-XFDFN Exposed Pad |
