| Part Number | PMPB20XPEAX | PMPB29XPEAX | PMPB20XNEAX |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active |
| FET Type | P-Channel | P-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 7.2A (Ta) | 5A (Ta) | 7.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V | 1.8V, 4.5V | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 23.5mOhm @ 7.2A, 4.5V | 32.5mOhm @ 5A, 4.5V | 20mOhm @ 7.5A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | 1V @ 250µA | 1.25V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 45 nC @ 4.5 V | 45 nC @ 4.5 V | 15 nC @ 4.5 V |
| Vgs (Max) | ±12V | ±12V | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 2945 pF @ 10 V | 2970 pF @ 10 V | 930 pF @ 10 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 1.7W (Ta), 12.5W (Tc) | 1.7W (Ta), 12.5W (Tc) | 460mW (Ta), 12.5W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

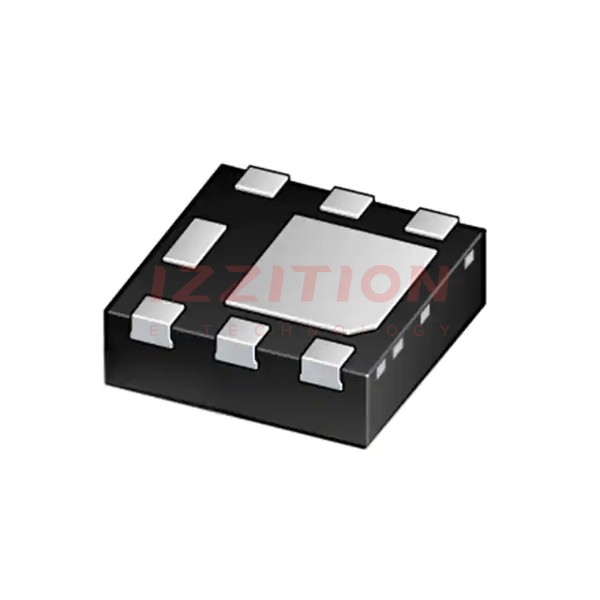

| Supplier Device Package | DFN2020MD-6 | DFN2020MD-6 | DFN2020MD-6 |
| Package / Case | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad |
