| Part Number | PMPB17EPX | PMPB12EPX | PMPB16EPX |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Obsolete | Active |
| FET Type | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 7.7A (Ta) | 7.9A (Ta) | 7.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 21mOhm @ 5.8A, 10V | 17.3mOhm @ 7.9A, 10V | 20mOhm @ 7.5A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | 2V @ 250µA | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 47 nC @ 10 V | 39.9 nC @ 10 V | 44 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 1570 pF @ 15 V | 227 pF @ 15 V | 1418 pF @ 15 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 1.9W (Ta), 13W (Tc) | 1.7W (Ta), 13W (Tc) | 2W (Ta), 12.5W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

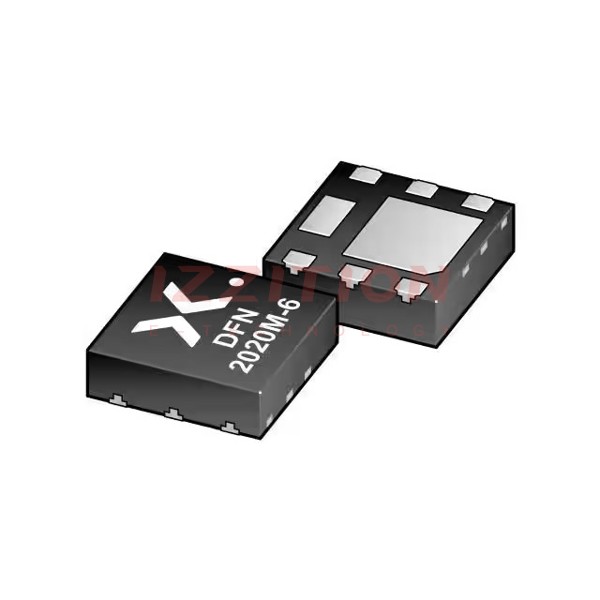

| Supplier Device Package | DFN2020M-6 | DFN2020MD-6 | DFN2020MD-6 |
| Package / Case | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad |
