Please send RFQ , we will respond immediately.

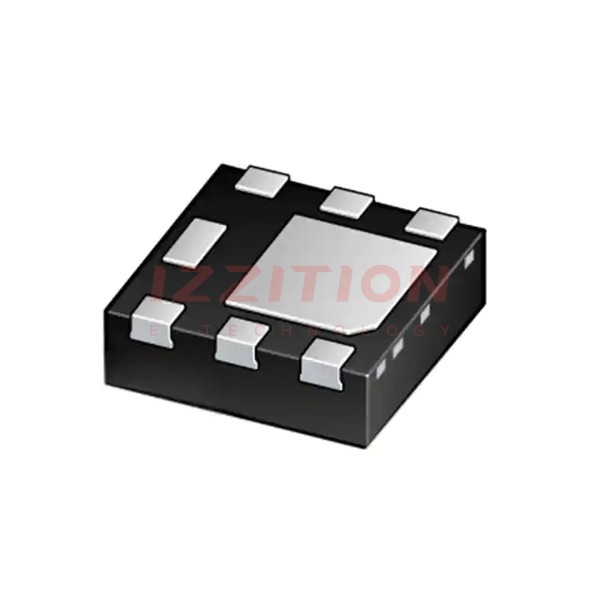

| Part Number | PMPB15XN,115 | PMPB15XP,115 | PMPB16XN,115 |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Obsolete |
| FET Type | N-Channel | P-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 12 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 7.3A (Ta) | 8.2A (Ta) | 7.2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V | 1.8V, 4.5V | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 21mOhm @ 7.3A, 4.5V | 19mOhm @ 8.2A, 4.5V | 21mOhm @ 7.2A, 4.5V |
| Vgs(th) (Max) @ Id | 900mV @ 250µA | 900mV @ 250µA | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 20.2 nC @ 4.5 V | 100 nC @ 4.5 V | 10.8 nC @ 4.5 V |
| Vgs (Max) | ±12V | ±12V | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 1240 pF @ 10 V | 2875 pF @ 6 V | 775 pF @ 15 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 1.7W (Ta), 12.5W (Tc) | 1.7W (Ta), 12.5W (Tc) | 1.7W (Ta), 12.5W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | DFN2020MD-6 | DFN2020MD-6 | 6-DFN2020MD (2x2) |
| Package / Case | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad |
