Please send RFQ , we will respond immediately.
| Part Number | PMP4501G115 | PMP4501G135 | PMP4501G,115 |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Obsolete |
| Transistor Type | 2 NPN (Dual) Matched Pair, Common Emitter | 2 NPN (Dual) Matched Pair, Common Emitter | 2 NPN (Dual) Matched Pair, Common Emitter |
| Current - Collector (Ic) (Max) | 100mA | 100mA | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 45V | 45V | 45V |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 5mA, 100mA | 400mV @ 5mA, 100mA | 400mV @ 5mA, 100mA |
| Current - Collector Cutoff (Max) | 15nA (ICBO) | 15nA (ICBO) | 15nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 2mA, 5V | 200 @ 2mA, 5V | 200 @ 2mA, 5V |
| Power - Max | 300mW | 300mW | 300mW |
| Frequency - Transition | 250MHz | 250MHz | 250MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

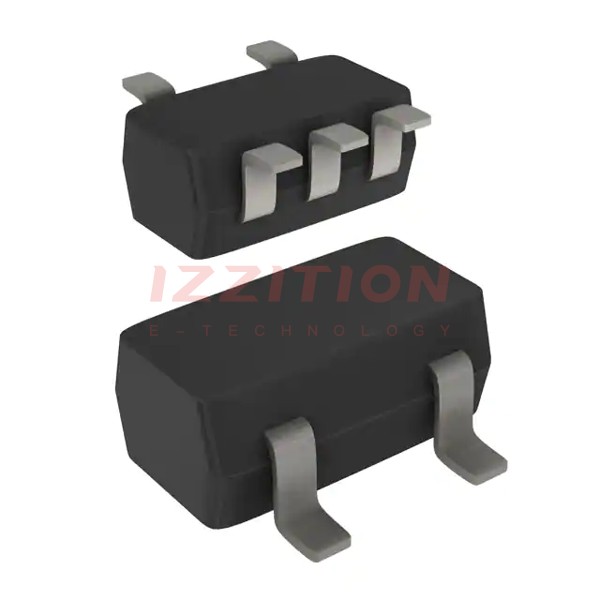

| Package / Case | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | 5-TSSOP | 5-TSSOP | 5-TSSOP |
