| Part Number | PMN48XPA2X | PMN48XPAX |
|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active |
| FET Type | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 4.4A (Ta) | 4.1A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 8V | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 49mOhm @ 4.4A, 8V | 55mOhm @ 2.4A, 4.5V |
| Vgs(th) (Max) @ Id | 1.3V @ 250µA | 1.25V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 10 nC @ 4.5 V | 13 nC @ 4.5 V |
| Vgs (Max) | ±12V | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 679 pF @ 10 V | 1000 pF @ 10 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 660mW (Ta), 7.5W (Tc) | 530mW (Ta), 6.25W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

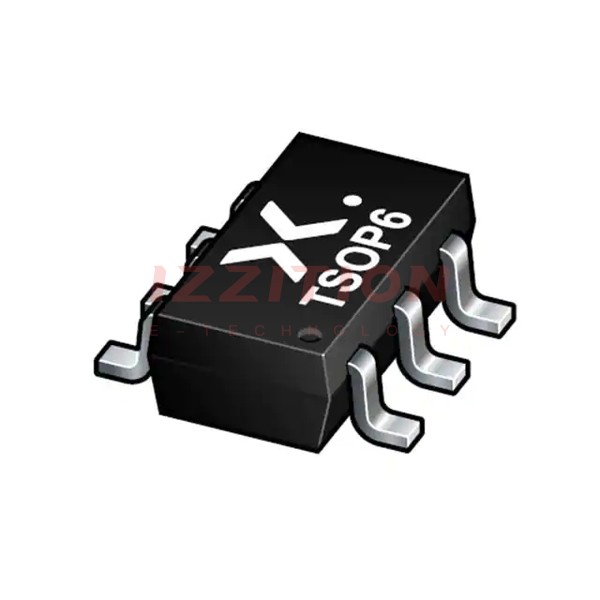

| Supplier Device Package | 6-TSOP | 6-TSOP |
| Package / Case | SC-74, SOT-457 | SC-74, SOT-457 |
