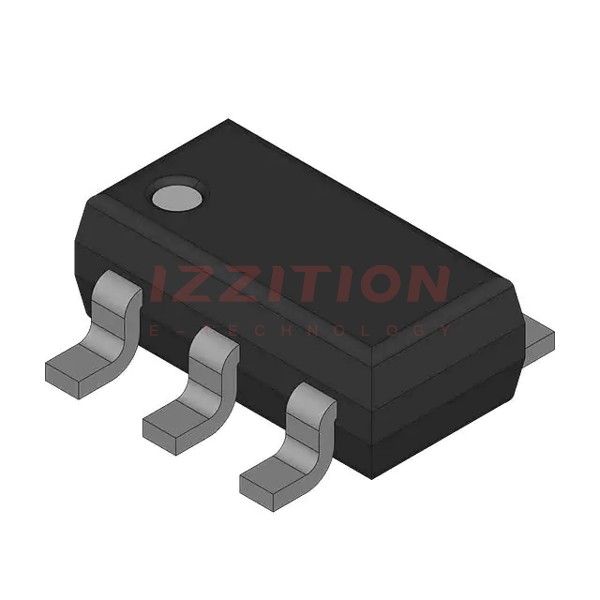

| Part Number | PMN120ENEX | PMN120ENEAX |
|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 3.1A (Ta) | 2.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 123mOhm @ 2.4A, 10V | 123mOhm @ 2.5A, 10V |
| Vgs(th) (Max) @ Id | 2.7V @ 250µA | 2.7V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 7.4 nC @ 10 V | 6 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 275 pF @ 30 V | 196 pF @ 30 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 1.4W (Ta), 6.25W (Tc) | 670mW (Ta), 7.5W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 6-TSOP | 6-TSOP |
| Package / Case | SC-74, SOT-457 | SC-74, SOT-457 |
