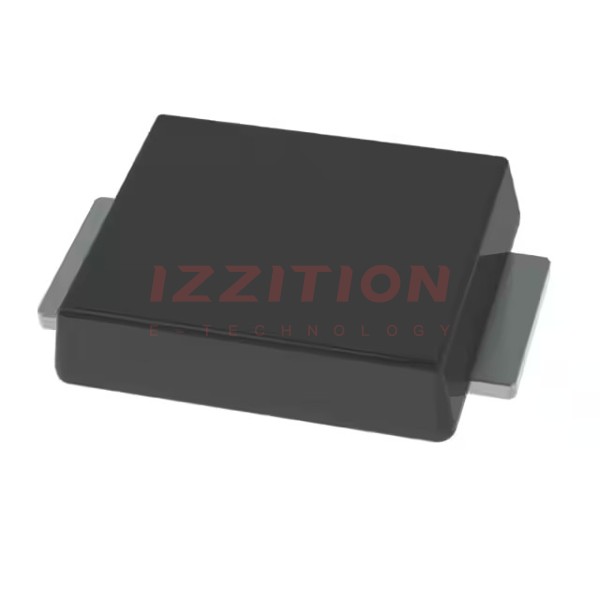

| Part Number | PMEG60T30ELP-QX | PMEG60T30ELR-QX | PMEG60T50ELP-QX | PMEG6030ELP-QX | PMEG60T10ELP-QX | PMEG60T20ELP-QX |
|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 60 V | 60 V | 60 V | 60 V | 60 V | 60 V |
| Current - Average Rectified (Io) | 3A | 3A | 5A | 3A | 1A | 2A |
| Voltage - Forward (Vf) (Max) @ If | 620 mV @ 3 A | 620 mV @ 3 A | 690 mV @ 5 A | 670 mV @ 3 A | 590 mV @ 1 A | 620 mV @ 2 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 16 ns | 17 ns | 16 ns | 12 ns | 9 ns | 14 ns |
| Current - Reverse Leakage @ Vr | 1.8 µA @ 60 V | 1.8 µA @ 60 V | 1.8 µA @ 60 V | 1 µA @ 60 V | 800 nA @ 60 V | 1.2 µA @ 60 V |
| Capacitance @ Vr, F | 560pF @ 1V, 1MHz | 580pF @ 1V, 1MHz | 560pF @ 1V, 1MHz | 315pF @ 1V, 1MHz | 280pF @ 1V, 1MHz | 400pF @ 1V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-128 | SOD-123W | SOD-128 | SOD-128 | SOD-128 | SOD-128 |
| Supplier Device Package | SOD-128/CFP5 | SOD-123W | SOD-128/CFP5 | SOD-128/CFP5 | SOD-128/CFP5 | SOD-128/CFP5 |
| Operating Temperature - Junction | 175°C | 175°C | 175°C | 175°C | 175°C | 175°C |
