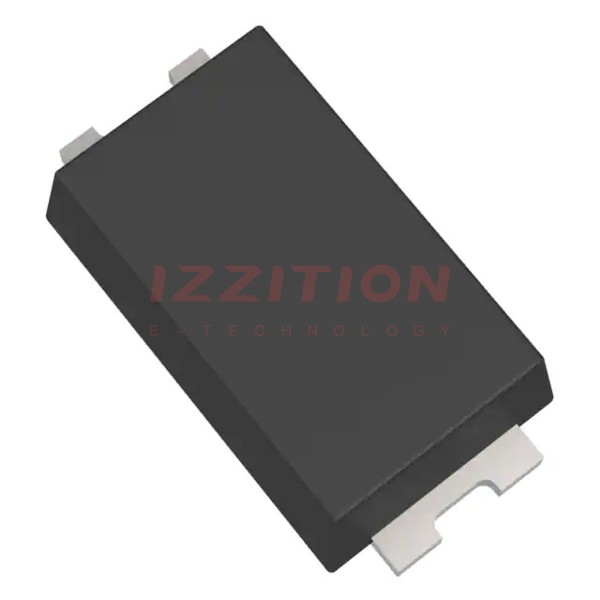

| Part Number | PMEG45T20EXDX | PMEG45T10EXDX |
|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active |
| Diode Type | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 45 V | 45 V |
| Current - Average Rectified (Io) | 2A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 560 mV @ 2 A | 520 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 9 ns | 8 ns |
| Current - Reverse Leakage @ Vr | 25 µA @ 45 V | 20 µA @ 45 V |
| Capacitance @ Vr, F | 160pF @ 4V, 1MHz | 80pF @ 10V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, Flat Lead | 2-SMD, Flat Lead |
| Supplier Device Package | SOD323HP | SOD323HP |
| Operating Temperature - Junction | 175°C | 175°C |
