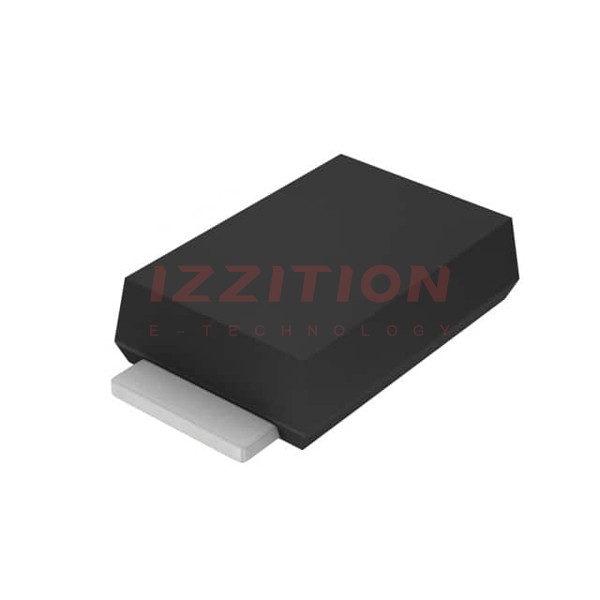

| Part Number | PMEG4020EP,115 | PMEG4050EP,115 | PMEG4020ETP,115 | PMEG4030EP,115 | PMEG4020ER,115 | PMEG4020EPA,115 | PMEG3020EP,115 | PMEG4010EP,115 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V | 40 V | 40 V | 40 V | 40 V | 40 V | 30 V | 40 V |
| Current - Average Rectified (Io) | 2A | 5A | 2A | 3A | 2A | 2A | 2A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 490 mV @ 2 A | 490 mV @ 5 A | 490 mV @ 2 A | 490 mV @ 3 A | 490 mV @ 2 A | 535 mV @ 2 A | 360 mV @ 2 A | 490 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - | 85 ns | - | - |
| Current - Reverse Leakage @ Vr | 100 µA @ 40 V | 300 µA @ 40 V | 100 µA @ 40 V | 200 µA @ 40 V | 100 µA @ 40 V | 100 µA @ 40 V | 3 mA @ 30 V | 50 µA @ 40 V |
| Capacitance @ Vr, F | 95pF @ 10V, 1MHz | 600pF @ 1V, 1MHz | 250pF @ 1V, 1MHz | 350pF @ 1V, 1MHz | 95pF @ 10V, 1MHz | 270pF @ 1V, 1MHz | 325pF @ 1V, 1MHz | 130pF @ 1V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-128 | SOD-128 | SOD-128 | SOD-128 | SOD-123W | 3-PowerUDFN | SOD-128 | SOD-128 |
| Supplier Device Package | SOD-128/CFP5 | SOD-128/CFP5 | SOD-128/CFP5 | SOD-128/CFP5 | SOD-123W | 3-HUSON (2x2) | SOD-128/CFP5 | SOD-128/CFP5 |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) | 175°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) |
