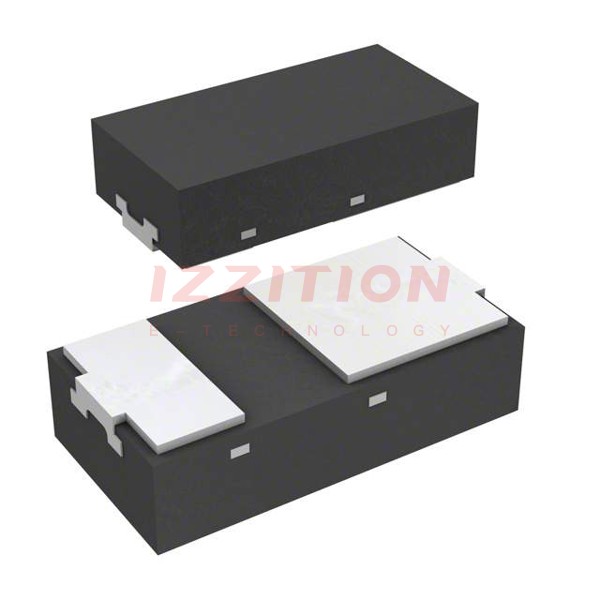

| Part Number | PMEG4005EPK,315 | PMEG4015EPK,315 |
|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active |
| Diode Type | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V | 40 V |
| Current - Average Rectified (Io) | 500mA | 1.5A |
| Voltage - Forward (Vf) (Max) @ If | 590 mV @ 500 mA | 610 mV @ 1.5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 2 ns | 4 ns |
| Current - Reverse Leakage @ Vr | 2 µA @ 10 V | 5 µA @ 10 V |
| Capacitance @ Vr, F | 35pF @ 1V, 1MHz | 90pF @ 1V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2-XDFN | 2-XDFN |
| Supplier Device Package | DFN1608D-2 | DFN1608D-2 |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) |
