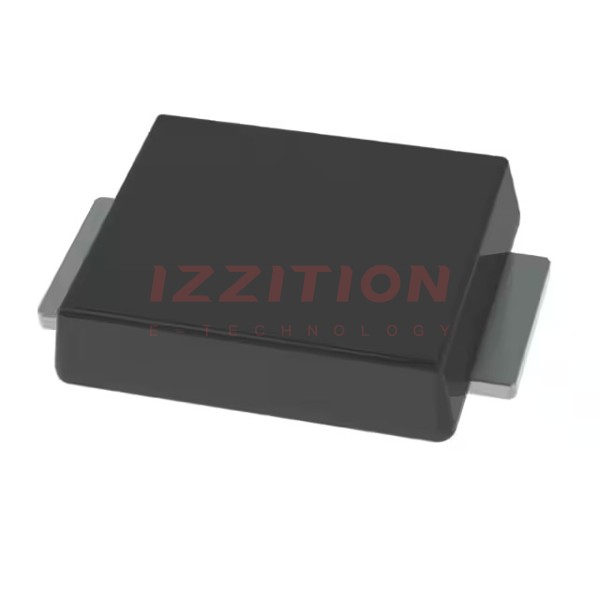

| Part Number | PMEG3020EP-QX | PMEG3020ER-QX | PMEG4020EP-QX | PMEG3030EP-QX | PMEG3050EP-QX | PMEG3010EP-QX | PMEG3020BEP-QX | PMEG3020CEP-QX | PMEG3020DEP-QX |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 30 V | 40 V | 30 V | 30 V | 30 V | 30 V | 30 V | 30 V |
| Current - Average Rectified (Io) | 2A | 2A | 2A | 3A | 5A | 1A | 2A | 2A | 2A |
| Voltage - Forward (Vf) (Max) @ If | 360 mV @ 2 A | 420 mV @ 2 A | 490 mV @ 2 A | 360 mV @ 3 A | 360 mV @ 5 A | 360 mV @ 1 A | 450 mV @ 2 A | 420 mV @ 2 A | 520 mV @ 2 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 3 mA @ 30 V | 1.5 mA @ 30 V | 100 µA @ 40 V | 5 mA @ 30 V | 8 mA @ 30 V | 1.5 mA @ 30 V | 100 µA @ 30 V | 1.5 mA @ 30 V | 50 µA @ 30 V |
| Capacitance @ Vr, F | 325pF @ 1V, 1MHz | 170pF @ 1V, 1MHz | 250pF @ 1V, 1MHz | 470pF @ 1V, 1MHz | 800pF @ 1V, 1MHz | 170pF @ 1V, 1MHz | 340pF @ 1V, 1MHz | 170pF @ 1V, 1MHz | 170pF @ 1V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-128 | SOD-123W | SOD-128 | SOD-128 | SOD-128 | SOD-128 | SOD-128 | SOD-128 | SOD-128 |
| Supplier Device Package | SOD-128/CFP5 | SOD-123W | SOD-128/CFP5 | SOD-128/CFP5 | SOD-128/CFP5 | SOD-128/CFP5 | SOD-128/CFP5 | SOD-128/CFP5 | SOD-128/CFP5 |
| Operating Temperature - Junction | 150°C | 150°C | 150°C | 150°C | 150°C | 150°C | 150°C | 150°C | 150°C |
