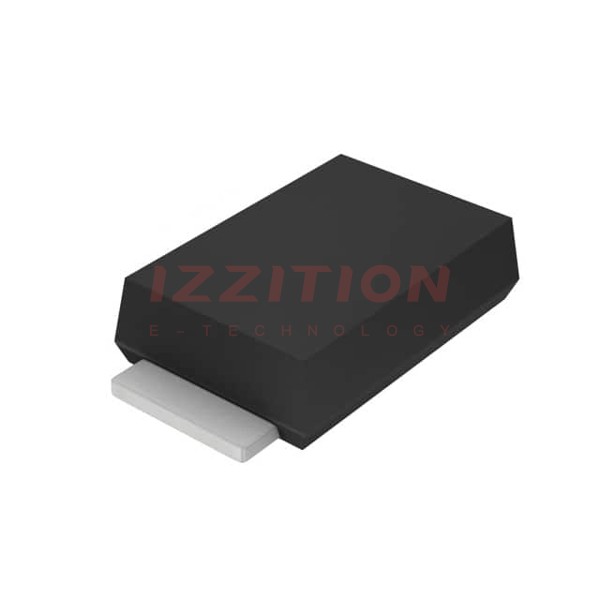

| Part Number | PMEG3020EP,115 | PMEG3030EP,115 | PMEG3050EP,115 | PMEG4020EP,115 | PMEG3020EPA,115 | PMEG3020ER,115 | PMEG3010EP,115 | PMEG3020BEP,115 | PMEG3020CEP,115 | PMEG3020DEP,115 | PMEG3020EH,115 | PMEG3020EJ,115 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP Semiconductors | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 30 V | 30 V | 40 V | 30 V | 30 V | 30 V | 30 V | 30 V | 30 V | 30 V | 30 V |
| Current - Average Rectified (Io) | 2A | 3A | 5A | 2A | 2A | 2A | 1A | 2A | 2A | 2A | 2A (DC) | 2A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 360 mV @ 2 A | 360 mV @ 3 A | 360 mV @ 5 A | 490 mV @ 2 A | 470 mV @ 2 A | 420 mV @ 2 A | 360 mV @ 1 A | 450 mV @ 2 A | 420 mV @ 2 A | 520 mV @ 2 A | 620 mV @ 2 A | 620 mV @ 2 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | 47 ns | - | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 3 mA @ 30 V | 5 mA @ 30 V | 8 mA @ 30 V | 100 µA @ 40 V | 2.5 mA @ 30 V | 1.5 mA @ 30 V | 1.5 mA @ 30 V | 100 µA @ 30 V | 1.5 mA @ 30 V | 50 µA @ 30 V | 1 mA @ 30 V | 1 mA @ 30 V |
| Capacitance @ Vr, F | 325pF @ 1V, 1MHz | 470pF @ 1V, 1MHz | 800pF @ 1V, 1MHz | 95pF @ 10V, 1MHz | 150pF @ 1V, 1MHz | 170pF @ 1V, 1MHz | 170pF @ 1V, 1MHz | 340pF @ 1V, 1MHz | 170pF @ 1V, 1MHz | 170pF @ 1V, 1MHz | 72pF @ 1V, 1MHz | 72pF @ 1V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-128 | SOD-128 | SOD-128 | SOD-128 | 3-PowerUDFN | SOD-123W | SOD-128 | SOD-128 | SOD-128 | SOD-128 | SOD-123F | SC-90, SOD-323F |
| Supplier Device Package | SOD-128/CFP5 | SOD-128/CFP5 | SOD-128/CFP5 | SOD-128/CFP5 | 3-HUSON (2x2) | SOD-123W | SOD-128/CFP5 | SOD-128/CFP5 | SOD-128/CFP5 | SOD-128/CFP5 | SOD-123F | SOD-323F |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) |
